Clear-com RS-702 2-Channel Beltpack

Clear-com RS-702

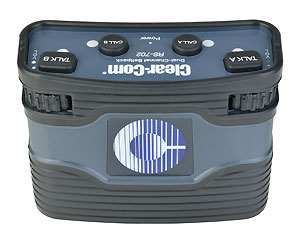

Clear-com RS-702 Dual Channel Wired Beltpack

Product Code: RS702
Clear-Com RS-702

review button

• 2-channel analog beltpack
• XLR-6 line connectors for 2-Channel + Program Audio
• Visual LED indication on top of keypad:
• Program Audio thumbwheel adjustment

Clear-com RS-702 2-Channel Wired Beltpack

Clear-com RS-702 is a two-channel analog beltpack that can carry power and audio through the XLR-6 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.


The RS-702 features LEDs on top of the beltpack for visual indication of incoming and
outgoing call signaling. A mic preamp enables intelligible voice communication for every
volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-702 has low operating current to allow for more beltpacks in a daisy-chain.
Additionally, a thumbwheel level adjustment is available for Program In.

DIP Switches and LEDs

A concealed DIP switch panel on the back of the beltpack allows the capability to select audio and key options quickly and easily. DIP switches can control features such as switching between electret or dynamic headsets, setting a minimum or off level for headphone output, adjusting volume settings, enabling or disabling LED signals, having Call on Talk or latching
the Talk key for Channel A, having Call on Talk or latching the Talk key for Channel B, Channel B Minimum Volume setting. A green LED indicates that the beltpack is powered and a green LED on the Talk key indicates that the microphone is active (Talk is latched). An amber LED indicates a Call signal on the channel.

Improved Design

The RS-702 is designed in a rugged and reliable casing with a retro-design connection to the
previous RS-500 Series beltpacks. A belt clip allows a variety of ways to use the
beltpack; users can clip it to a belt or lanyard, or users can mount the belt clip to a wall, pole or desk for fixed installations.


The RS-702 is compatible with all Encore partyline products, as well as the PL-Pro line and
other partyline systems via Encore interfaces.

XLR-6 line connectors for 2-Channel + Program Audio
• Visual LED indicators on top of keypad
• Tactile buttons for Call and Talk
• Recessed rotary controls for Volume with end stops
• Concealed, programmable DIP switches
• Program Audio thumbwheel adjustment
• Fully compatible with current and previous Clear-Com analog partyline systems
• Low operating current for more beltpack daisy-chaining
• Rugged and strong construction
• “Clear-Com Sound” for intelligible audio

Microphone Pre-Amplifier

Mic to Line (without limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Clear-Com Sound: Yes

Headphone Amplifier

Frequency Response – Line to Headphone: 150 – 20kHz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
Headphone input from line – Distortion: <0.5%
Headphone input from line – Signal to Noise: >50dB
Earphone to Mic – Crosstalk: >80dB
Sidetone – Adjustment Range (-80db mic input): >45dB

• Keypad Indicators

Power: Green LED
Talk A and B: Green LED
Call A and B: Orange LED

• Connectors

Intercom Line: (2) 6-pin XLR–M–F
Switchcraft pin layout*
Pin 1: Common
Pin 2: PL Power (+28V DC)
Pin 3: PL Ch-B
Pin 4: PL Ch-A
Pin 5: Program Audio +
Pin 6: Program Audio -
Each intercom channel should be an individually shielded pair
Headset: 4-pin XLR–M
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3: SpkrPin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)

• Power

Input Voltage Range: 12-30V DC
Input Current (Idle): <=25mA
Input Current (Max): <=40mA

• Call Voltage

16.5V DC
Minimum Voltage Needed: 3.3V

• Environmental

32˚ - 158˚F (0˚ - 70˚C)
Relative Humidity: 0 - 90%, non-condensing

• Dimensions

3.4 x 4.5 x 1.7in (HxWxD)
(86 x 114 x 43mm)

• Weight

10.5oz (0.30kg)
