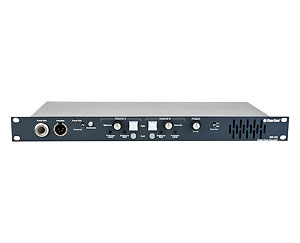

Clear-com RM-702 is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control. The RM-702 is powered directly from the intercom line and requires no external AC power.

Monitoring System

The RM-702 can monitor intercom activity on one or both channels with individual volume level controls. Monitoring intercom activity is possible through a headset or the internal high sensitivity loudspeaker.

Talk Selection

The RM-702 has mic pre-amps with limiters. An individual electronic momentary/latching Talk button is available for each channel. Illuminated dual-action Talk buttons light an LED dimly when latched: blue-color while in standby, amber-color when latched. The latching feature can be disabled. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone. The Talk buttons can also be controlled with a footswitch.

Call Signaling

The RM-702 features individual call buttons and visual call signaling to attract the attention of operators who have removed their headsets or turned o their speakers. The visual signal flashes the illuminated Talk button when a call is received. The call signaling feature can be programmed to the Talk buttons.

Program Input (IFB)

The RM-702 accepts either a balanced or unbalanced line-level audio input through
the DB-15 connector on the rear panel. The program can be monitored at the station
or fed into another channel where it can also be set up for IFB/Program Interrupt
from this or any other station.



• Selectable one- or two-channel communication
• Momentary/latching talk buttons
• Individual call buttons
• Visual call signaling
• Balanced audio input with program interrupt (IFB)
• Hot mic and line-level outputs
• Studio announce output with relay
• Optional plug-in gooseneck mic
• Wide-range, high-output speaker
• LED buttons for Talk, Call, Announce

• Panel Microphone Input

Input Type: Electret

Input Impedance: >=2K

Mic Limiter Threshold: 0dBu ±3dB

Mic Limiter Range: >= 20dB

• Headset Microphone Input

Input Type: Dynamic

Input Impedance: >= 1K

Mic Limiter Threshold: 0dBu ± 3dB

Mic Limiter Range: >= 15dB

• Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

• Headset Output

Load Impedance: >= 8

Output Impedance: <= 25

Output Limiter Threshold: +5dBu ± 3dB

Maximum Output Level before Distortion: >= 17dBu

• Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

• Partyline Output

Output Noise: < -74dBu

Output Impedance: >10K

• Partyline Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Sidetone Null Capability: > 25dB

• Stage Announce/Balanced Line Out

Type: Balanced

Output Impedance: >= 200

Load Impedance: >= 600

• IFB/Hot Mic

Type: Unbalanced

Output Impedance: 180

Load Impedance: >= 600

• Frequency Response

Panel Mic - Partyline: 600 - 10kHz ± 3dB
Headset Mic - Partyline: 200 - 12kHz ± 3dB
Headset Mic - Line Out: 200 - 12kHz ± 3dB
Program Input - Partyline: 100 - 17kHz ± 3dB
Program Input - Headset Out: 200 - 10kHz ± 3dB
Program Input - Speaker Out: 300 - 10kHz ± 3dB
Partyline - Headset Out: 200 - 10kHz ± 3dB
Partyline - Speaker Out: 300 - 10kHz ± 3dB

• Max Distortion

Panel Mic - Partyline: <= 0.5%
Headset Mic - Partyline: <= 0.5%
Headset Mic - Line Out: <= 0.5%
Program Input - Partyline: <= 0.2%
Program Input - Headset Out: <= 0.2%
Program Input - Speaker Out: <= 0.5%
Partyline - Headset Out: <= 0.2%
Partyline - Speaker Out: <= 0.5%

• Noise

Panel Mic - Partyline: < -65dBu

Headset Mic - Partyline: < -70dBu

Headset Mic - Line Out: < -55dBu

Program Input - Partyline: < -85dBu

Program Input - Headset Out: < -60dBu

Program Input - Speaker Out: < -60dBu

Partyline - Headset Out: < -50dBu

Partyline - Speaker Out: < -50dBu

• Max Gain

Panel Mic - Partyline: >= 37dB

Headset Mic - Partyline: 41dB ± 2dB

Headset Mic - Hot Mic Out: 55dB ± 3dB

Headset Mic - Announce Out: 55dB ± 3dB

Program Input - Partyline: >= -16dB

Program Input - Headset Out: >= 18dB

Program Input - Speaker Out: >= 24dB

Partyline - Headset Out: >= 34dB

Partyline - Speaker Out: >= 40dB

• Min Gain

Panel Mic - Partyline: <= 25dB

• Power

Input Voltage Range: 20-30V DC

Input Current (Idle): <= 90mA

Input Current (Max): <=110mA

• Environmental

32 - 122°F (0 - 50°C)

• Dimensions

1.75 x 19 x 7.0in (HxWxD)

(44 x 483 x 178mm)

• Weight

5.2lbs (2.4kg)
