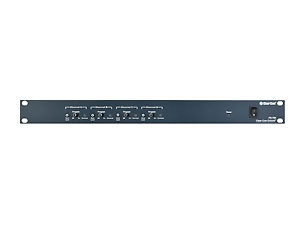

 Clear-Com PS-704 4-Channel 2-Amp Rack Mount Power Supply

Clear-Com PS-704 Power Supply
Product Code: PS704

Buy Sell Sales Clear-Com PS-704
review button


4-Channel 2-Amp Rack Mount (1RU) System Power Supply - UL Listed. 4-channel x 2 intercom jacks, 1 program input, universal power supply.

The PS-704 is a four-channel, single rack-space intercom power supply that features Clear-Com’s "fail-safe" design for maximum reliability. The power supply delivers 1.2 amps at 30 volts, supplying power for one to four channels of intercom. It will support up to 40 beltpacks, 10 speaker stations or 12 headset stations


Technical Details of PS704
Program Line Input Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5KΩ

Frequency Response Program Input - Party-line: 200 - 20KHz ± 3dB

Max Distortion Program Input - Party-line : <= 0.2%

Noise Program Mic Input - Party-line:< -70dBu

Max Gain Program Input - Party-line: >= -16dB

Min Gain Program Input - Party-line: <= -20dB

Mains Power Input Voltage Range: 100 - 240 VAC
Input Frequency Range: 50 - 60 Hz
Input Power : <= 60 VAC
Output Voltage: 30 VDC ± 0.5V
Output Current per Channel (Continuous): 1.2 A
Output Current per Channel (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short): <= 0.5 sec
Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec

Station Capacity Up to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over both channels

Rear Panel Connectors Intercom: (8) XLR-3M (2 per channel)
Program: (1) XLR-3F
AC Power: IEC 320 connector

Rear Panel Controls (4) Termination On-Off switches
(1) Volume control

Front Panel Controls & Indicators (4) Program switch
(4) Send level controls
(4) Overload LEDs
(1) Power indicator LED
(1) Power switch

Environmental 32˚ - 122˚F (0 - 50˚C)

Dimensions 19 in. W x 1.75 in. H x 7.5 in. D
(483 mm x 44 mm x 190 mm)

Weight 6.16 lbs. (2.80 kg)
