Clear-com AX-704 IFB Expansion Control Panel

Clear-com AX-704 IFB Expansion Control Panel

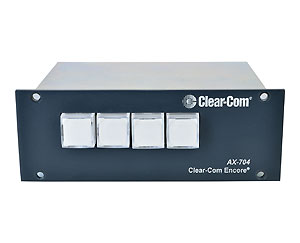

Clear-com AX-704 Expansion Station connects to an MA-704, expanding the IFB channel selection capabilities by four additional channels per AX-704. Multiple AX-704’s may be linked together to control a maximum of 96 talent channels.

• Expands MA-704 station by four Talent channels
• Connect multiple expansion panels for up to 96 Talent channels
• All IFB button simultaneously access all Talent channels
• Tally lights indicate IFB channels in use
• Optional rack mount kit for up to 12 talent access buttons in a 1RU
• Powered by the intercom line

Frequency Response

• Extension Line - Talent: 200 - 18kHz ± 3dB

Max Distortion

• Extension Line - Talent: <= 0.1%

Noise

• Extension Line - Talent: < -85dBu

Power

• Input Voltage Range: 20-30V DC

• Input Current (Idle): <= 120mA

• Input Current (Max): <= 150mA

Rear Panel Connectors

• IFB Input: (1) XLR6F-Switchcraft pin layout*

• IFB Ext.: (1) XLR6M-Switchcraft pin layout*

• Extension Bus Out: (1) 1/4 TRS jack socket

• External Line In: (1) 1/4 TRS jack socket Requires a cable with 4 shielded pairs.

Front Panel Controls & Indicators

• (4) Talk buttons

Environmental

• 32° - +122°F (0° - +50°C)

Dimensions

• 4.9 x 1.75 x 5.5in (WxHxD)

(125 x 44 x 140mm)

Weight

• 1.35lbs (0.61kg)
