Clear-com HXII-BP 2-Channel Intercom Beltpack

Clear-com HXII-BP

Clear-com HXII-BP 2-Channel Intercom Beltpack

Product Code: HXII-BP

HXII-BP-X5 Clear-Com HXII-BP-x5

review button

• Easy to use front panel with OLED display & backlit keys
• 2 Keysets assignable to channels
• Stacked keys allow unique combination of channels
• Independent Program Audio control

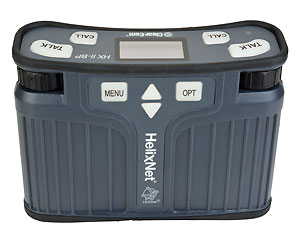

Clear-com HXII-BP 2-Channel Intercom User Station

Clear-com HelixNet HXII-BP beltpack is a two-channel intercom user station hosted by
Arcadia® Central Station or HelixNet HMS-4X*** main station.


The beltpack provides two keysets assignable to any intercom channel and allows multiple channels to be uniquely stacked onto a keyset. The beltpack comes with a headset connection, independent Program Audio level control and a micro-USB Flasher connection to a third-party USB light.

HXII-BP-X5 has connection to dual ear five-pin headsets for split-ear binaural operation, allowing the user to pan the keysets channels between left and right ears.

Local and Central Management Options

HXII-BP can be added to an Arcadia or a HelixNet system host without central configuration or interruption. Front panel allows tactile device configuration and channel assignment.

Roles can be created and applied to one or multiple HXII-BP remotely or locally.
Roles can be edited locally or centrally managed from the Core Configuration ManagerTM (CCM*).

Connectivity and Power Options

HXII-BP connects to Arcadia Central Station or HMS-4X*** main stations with HLI-ET2 Ethernet module over network. Power is supplied to the HXII-BP with Power over Ethernet (PoE) from 3rd party devices. Alternatively, HXII-BP can connect to HelixNet HMS-4X*** main stations over XLR Powerline with power.**

*CCM and Endpoint network connection to HMS-4X requires HLI-ET2
**XLR Powerline is not available for Arcadia. Contact Clear-Com for further information.
***HMS-4X is a legacy product as of 2022

- Easy to use front panel with OLED display & backlit keys
- 2 Keysets assignable to channels
- Stacked keys allow unique combination of channels
- Independent Program Audio control
- USB call signal flasher
- Binaural controls on HXII-BP-X5

• Connectivity
- Ethernet Network port with PoE(1)
- Powerline via XLR cable to HMS-4X(2/3)

• Mechanical
- Multiple mounting options
- Rugged, lightweight polycarbonate enclosure
- IP53 environmental rating

• The HelixNet System
- Wired Partyline - Networked
- Hosted by Arcadia or HMS-4X(3)
- Up to 24 Channels – Licensed
- Up to 64 HelixNet Endpoints
- Program Audio user level control

• Effortless Management
- Easy to use CCM browser configuration
- Fast front panel control & configuration
- Central discovery & pairing on Arcadia
- Plug-and-go powerline to HMS-4X(2/3)
- Central firmware upgrades from host


XLR Powerline**: 3-pin XLR-F

LAN/PoE: RJ45 etherCON

Headset: 4-pin XLR-M (-X4) or 5-pin XLR-F (-X5)

USB: Micro AB

• Microphone Pre-Amplifier

Headset Mic Impedance: 200O (Dynamic)

Headset Mic Voltage: 1.7V (Electret selectable)

Limiter: +23dB

Route to 4-wire output at 0dBu out: Mic Gain: 60dB (Dynamic), 45dB (Electret)

Frequency Response: 300Hz – 10 kHz ± 3dB, contoured for intelligibility

Distortion: <0.2% THD @ 1kHz

Noise: <-55dBu (Dynamic), <-65dBu (Electret)

• Headphone Amplifier

Load Impedance: >32O

Output Level: +12dBu before clipping

Sidetone: -12dB (selectable)

Route from a 4-wire input at 0dBu in: Max Gain: 0dB

Frequency Response: 40Hz - 10kHz ±3dB

Distortion: <0.2% THD @ 1kHz

Noise: -65dBu

Headphone Limiter: 0dB (selectable)

• Device Power

Voltage: 48V DC

Current (Max): 0.09A

Power (Max): 4W

BTU (Max): 13BTU/hr

This unit can be powered via: PoE - Power over Ethernet*: IEEE 802.3af-2003 - Class 1

PSE: 4.0W DC max @ Power Source Req.

PD: 3.84W DC max @ Powered Device Draw

Powerline**: Input Voltage: ±29.5V DC

Input Current (Max): 0.13A

Powerline Utilization: HXII-BP = 1 beltpack Note the maximum Powerline capacity of the HMS-4X Use HelixNet Cable Calculator to validate load and cable distance.

• Environmental

32° to +104°F (0° to +40°C) 0 - 90% relative humidity IP53 rated

• Dimensions

3.9 x 5.3 x 1.7in (WxHxD)

99 x 135 x 43mm (WxHxD)

• Weight

12.2oz (0.35kg)

• Network Specifications (Firmware Version 4.2+)

Network Protocols
Ethernet IPv4–Unicast Audio and Control

mDNS–Multicast Device Discovery Layer 3 routable with mDNS function limitations

HTTP–Management RTP–Audio Transport WavPack–Audio Codec

• Network Ports


Port 80 TCP–System Management

Port 6001 TCP–System Management

Port 6001 UDP–Audio Streams


Port 5353 UDP–mDNS, Names, Discovery, Linking Optional for device names and linking

• Network Parameters

Endpoint Resource Use: 1 (-X4 variant)

Endpoint Resource Use: 2 (-X5 for binaural)

Bandwidth: 300 (max) kbps from each HXII-BP to HMS 1200 (max) kbps from HMS to each endpoint

Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance

QoS Tags: DSCP=41, Assured Forwarding (AF)

Link-Local Default IP Address Range:

System Reserved IP Range: for endpoints

• Recommended Ethernet Switches

• Managed Ethernet Switch – Layer 3

• 100/1000 Base-T ports for endpoints

• 1000 Base IP Trunks between switches

• QoS configuration

• Energy Efficient Ethernet bypass option

• IGMP Snooping bypass option

Please refer to the Clear-Com HelixNet Network Guide for additional switch settings and network characteristics.

*Ethernet to HMS-4X requires HLI-ET2

**Not available for Arcadia. Contact Clear-Com
