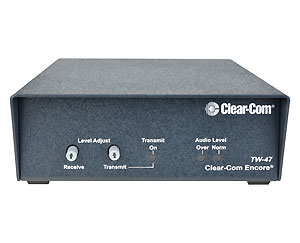

 Clear-Com TW-47 2-Way Radio Interface

Clear-Com TW-47
Product Code: TW47
Offer Clear-Com TW-47
review button


Clear-Com/RTS 2-Way Radio Interface, connects Clear-Com or RTS to any 2-way radio

Compatible with both Clear-Com and RTS®, TW-47 connects virtually any set of walkie-talkies to anyone on the wired party-line intercom; simply use one walkie-talkie as a basestation. The base-station radio is keyed from the intercom call signal. Extensive RF and EMI isolation prevents interference from entering the intercom system. Separate transmit and receive level controls are provided, along with audio level and transmitter keying indicators. The stand-alone interface is powered by the intercom line.

Note: Two-way radio must have headset and microphone jacks.


Technical Details of TW-47
Radio to Party-line Line Chracteristics
Frequency Response: 200-20KHz ± 3dB
Max Gain: >=-5dBu
Distortion: <=0.3%
Noise: <=-70dBu
Max Level Before Clipping: >=+17dBu
Green LED Threshold: -22dBu ± 3dB
Red LED Threshold: -16dBu ± 3dB
Input Impedance: 400Ω ± 100Ω

Party-line to Radio Line Characteristics
Frequency Response: 200-8KHz ± 3dB
Max Gain J7 ON, J8 ON: -12dBu ± 3dB
Max Gain J7 OFF, J8 ON: +2dBu ± 3dB
Max Gain J7 OFF, J8 OFF: +27dBu ± 3dB
Distortion: <=0.3%
Noise: <=-50dBu
Max Level Before Clipping: >=0dBu

Power Requirements Input Voltage Range: 20-30VDC
Quiescent Current: <=40mA
Current with Audio: <=50mA
Current with Call: <=60mA

Rear Panel Connectors (1) XLR3F
(1) DB-9F

Front Panel Controls and Indicators Transmit: (1) Red LED
Audio Level Hi: (1) Red LED
Audio Level Norm: (1) Green LED
Receive Level Adjust: (1) Control
Transmit Level Adjust: (1) Control

Dimensions

1.63 in. H x 4.75 in. W x 5.15 in. D
(41.4 mm x 121 mm x 131mm)

Weight 1 lb. 4 oz. (0.6 kg)
