Clear-Com MS-702 2-Channel Headset/Speaker Main Station

Home > Clear-Com > Party-Line > Partyline Main Stations > MS-702
  • Clearcom MS-702
    Product Code: MS702
    Buy Sell Sales Clear-Com MS-702
    review button

    Clearcom MS-702
Clear-Com MS-702: Overview

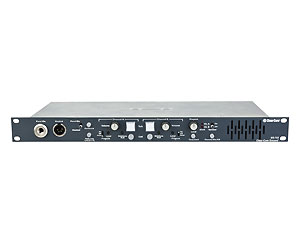

2-Channel Headset/Speaker Main Station with built-in 2-amp power supply, rack mount (1RU) - UL Listed

Clear-com MS-702 is a 2-channel, 1U Rack space main station. It is perfect for ENG and EFP trucks, live programs, outdoor performances and production studios.

It has an outstanding speech intelligibility in both high and low noise levels. Users have a freedom of choice as MS-702 can be modified according to their needs through its programmable choices.

MS-702 gives opportunity to the operator to make contact on either of the intercom channels individually or both at a time.

MS-702 featuring Remote Mic Kill (RMK) which is able to turn off all open mics on remote beltpacks.MS-702 provides both audible and visual call signaling which make the operators to pay attention who removed their headsets or turned off their speakers.

MS-702 gives 30-volt DC power to beltpacks and remote station for operation. This power is shared by two channels and keep up to 60 headset and 20 speaker stations.The channel will be shutdown automatically when a short circuit or general electricity overload is identified on that channel as MS702 is in built with Clear-com fail-safe design.


Clear-Com MS-702 - Specifications
Panel Microphone Input Input Type: Electret
Input Impedance: >=2KΩ
Mic Limiter Threshold: 0 dBu ±3 dB
Mic Limiter Range: >= 20 dB
Headset Microphone Input Input Type: Dynamic
Input Impedance: >= 1KΩ
Mic Limiter Threshold: 0 dBu ± 3dB
Mic Limiter Range: >= 15 dB
Program Line Input Maximum Level before Clipping: >= 20 dBu
Input Impedance: >= 5KΩ
Headset Output Load Impedance: >= 8Ω
Output Impedance: <= 25Ω
Output Limiter Threshold: +5 dBu ± 3 dB
Maximum Output Level before Distortion: >= 17 dBu
Speaker Output Load Impedance: >= 4Ω
Max Output Level before 1% Distortion: 20 dBu ± 2 dBu
Party-line Output Off Noise: < -74 dBu
Output Impedance: >10 KΩ
Party-line Input Crosstalk: < -60 dB
Max level before Clipping: >= 12 dBu
Sidetone Null Capability: > 25 dB
Stage Announce/Balanced Line Out Type: Balanced
Output Impedance: >= 200Ω
Load Impedance: >= 600Ω
IFB/Hot Mic Type : Unbalanced
Output Impedance: 180Ω
Load Impedance: >= 600Ω
Frequency Response Panel Mic - Party-line: 600 - 10KHz ± 3dB
Headset Mic - Party-line: 200 - 12KHz ± 3 dB
Headset Mic - Line Out: 200 - 12KHz ± 3 dB
Program Input - Party-line: 100 17KHz ± 3 dB
Program Input - Headset Out: 200 - 10KHz ± 3 dB
Program Input - Speaker Out: 300 - 10KHz ± 3 dB
Party-line - Headset Out: 200 - 10KHz ± 3 dB
Party-line - Speaker Out: 300 - 10KHz ± 3 dB
Max Distortion Panel Mic - Party-line: <= 0.5%
Headset Mic - Party-line: <= 0.5%
Headset Mic - Line Out: <= 0.5%
Program Input - Party-line: <= 0.2%
Program Input - Headset Out: <= 0.2%
Program Input - Speaker Out: <= 0.5%
Party-line - Headset Out: <= 0.2%
Party-line - Speaker Out: <= 0.5%
Noise Panel Mic - Party-line: < -65 dBu
Headset Mic - Party-line: < -70 dBu
Headset Mic - Line Out: < -55 dBu
Program Input - Party-line: < -85 dBu
Program Input - Headset Out: < -60 dBu
Program Input - Speaker Out: < -60 dBu
Party-line - Headset Out: < -50 dBu
Party-line - Speaker Out: < -50 dBu
Max Gain Panel Mic - Party-line: >= 37 dB
Headset Mic - Party-line: 41 dB ± 2 dB
Headset Mic - Hot Mic Out: 55 dB ± 3 dB
Headset Mic - Announce Out: 55 dB ± 3 dB
Program Input - Party-line: >= -16 dB
Program Input - Headset Out: >= 18 dB
Program Input - Speaker Out: >= 24 dB
Party-line - Headset Out: >= 34 dB
Party-line - Speaker Out: >= 40 dB
Min Gain Panel Mic - Party-line: <= 25 dB
Mains Power Input Voltage Range: 100 - 240 VAC
Input Frequency Range: 50 - 60 Hz
Input Power: <= 60 VAC
Output Voltage : 30 VDC ± 0.5V
Output Current per Channel (Continuous): 1.2 A
Output Current per Channel (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short): <= 0.5 sec
Short Circuit Recovery Time >= 20 shorts in 20sec: <= 20 sec
Station Capacity Up to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over both channels
Rear Panel Connectors Intercom: (6) XLR-3M (3 per channel)
Announce Out: (1) XLR-3M (audio)
Announce Relay: (1) 1/4 in. (0.64 cm) phone jack (relay)
Program: (1) XLR-3F
Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm) phone jack
AC Power: IEC 320 connector
Rear Panel Controls (2) Termination On-Off switches
(8) Option switches
(1) Power switch
(1) Tone alert volume control
Front Panel Connectors Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
Headset: (1) XLR-4M
Front Panel Controls & Indicators (1) Panel / headset mic switch
(1) Announce button
(1) Party-line link button
(2) Program ON-OFF-INTERRUPT switches
(3) Program level controls
(2) Listen controls
(2) Sidetone null controls
(2) Talk buttons
(2) Call buttons
(1) Tone alert button
(1) RMK button
(1) Speaker ON-OFF switch
(2) Short LEDs
Environmental 32 - 122˚F (0 - 50˚C)
Dimensions 19 in. W x 1.75 in. H x 6.5 in.
(483 mm x 44 mm x 165 mm)
Weight 6.06 lbs. (2.75 kg)
