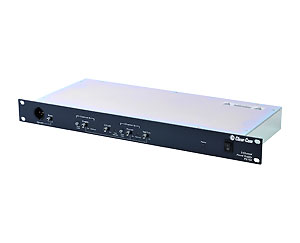

Clear-com PS-702 Portable Power Supply
Clear-Com PS-702 can deliver 1.2 amps at 30
volts DC to two channels. This is sufficient to power up to 40 beltpacks, 10
speaker stations, or 12 headset stations even under the most demanding
conditions. Either channel is capable of supplying up to 1.2 amps. The full
current capacity may be divided between the two channels.
Features:
• Provides up to
2 amps at 30 Volts
• Supports up to 40 beltpacks, 10 speaker stations, or
12 headset stations
• Full current capacity can be divided between the
two channels
• Exclusive Intelligent Fault/Overload Sensing (IFOS) for
system reset
• A+B Link switch for single-channel operation
• Built-in
test tone generator for set up and diagnostics
• UL listed and CE
certified
• Line and load regulated
• Short-circuit protected
• Program Line Input
Maximum Level before Clipping:
>= 20dBu Input Impedance: >= 5K
• Frequency Response
Program Input - Partyline: 200 - 20kHz ± 3dB
•
Max Distortion
Program Input - Partyline: <= 0.2%
• Noise
Program Mic Input - Partyline: < -70dBu
• Max Gain
Program Input - Partyline: >= -16dB
• Min Gain
Program Input - Partyline: <= -20dB
• Mains Power
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power: <= 60V AC
Output Voltage: 30V DC ± 0.5V
Output Current per Channel
(Continuous): 1.2A
Output Current per Channel (Peak): 2A (Do not
exceed the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short):<= 0.5 sec
Short Circuit
Recovery Time: >= 20 shorts in 20sec) <= 20 sec
•
Environmental
32° - 122°F (0° - 50°C)
•
Dimensions
1.75 x 19 x 7.5in (HxWxD)
(44 x 483 x
190mm)
• Weight
6.16lbs (2.80kg)
