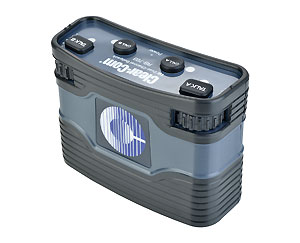

Clear-com RS-703 2-Channel TW Analog Beltpack
Clear-com RS-703 is a two-channel analog TW
beltpack that can carry power and audio through the XLR-3 line connector
using TW partyline. Each beltpack combines high headroom, low-noise audio
and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.
Operation
The RS-703 features LEDs on the top of the beltpack
for visual indication of incoming and
outgoing call signaling. A mic
preamp enables intelligible voice communication for every volume level.
Recessed rotary volume control, Talk and Call keys guard against accidental
activation. The RS-703 has low operating current to allow for more beltpacks
in a daisy-chain.
Additionally, a thumbwheel level adjustment is
available for Program In, as well as a 3.5mm TRS jack for balanced mono
Program Input.
DIP Switches and LEDs
A concealed DIP switch panel on the back of the
beltpack allows the capability to select audio
and key options quickly
and easily. DIP switches can control features such as switching between
electret or dynamic headsets, setting a minimum or off level for
headphone output, adjusting volume settings, enabling or disabling LED
signals, having Call on Talk or latching the Talk key for Channel A,
having Call on Talk or latching the Talk key for Channel B, Channel B
Minimum Volume setting, and RTS-TW/Clear-Com Select. A green LED indicates
that the beltpack is powered and a green LED on the Talk key indicates that
the microphone is active (Talk is latched). An amber LED indicates a Call
signal on the channel.
Improved Design
The RS-703 is designed in a rugged and reliable
casing with a retro-design connection to the
previous RS-500 Series
beltpacks. A belt clip allows a variety of ways to use the beltpack;
users can clip it to a belt or lanyard, or users can mount the belt clip to
a wall, pole or desk for fixed installations.
Compatibility
The RS-703 is compatible with any TW capable
partyline intercom systems or peripherals. This beltback requires the use
of TWC-703 TW adaptor when used with a Clear-Com partyline intercom system.
The RS-703 can also be directly connected FreeSpeak® Basestations, ArcadiaTM
Central Station and LQ® IP Interfaces with 2-wire ports configured for
RTS-TW use.
• Visual LED indicators on top of keypad
•
Tactile buttons for Call and Talk
• Recessed
rotary controls for Volume with end stops
•
Concealed, programmable DIP switches
• XLR-3 line
connectors with 2-channel TW connectivity
• 3.5mm
Program Audio Input jack
• RTS-TW compatible
•
Fully compatible with Clear-Com analog partyline systems when using the
TWC-703 adapter
• Low operating current for more
beltpack daisy-chaining
• Rugged and strong
construction
• “Clear-Com Sound” for intelligible
audio
• Microphone Pre-Amplifier
Mic to Line
(without limiter acting)
Frequency Response: 280 – 15k Hz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to
line – Signal to Noise: >65dB
Clear-Com Sound: Yes
• Headphone Amplifier
Frequency Response –
Line to Headphone: 150 – 20kHz ± 3dB
Headphone input from line – Audio
Level (-9dBm Electret input): 7dBm
Headphone input from line –Distortion:
<0.5%
Headphone input from line – Signal to Noise: >50dB
Earphone to
Mic – Crosstalk: >80dB
Sidetone – Adjustment Range (-80db mic input):
>45dB
• Keypad Indicators
Power: Green LED
Talk A and B: Green LED
Call A and B: Orange LED
• Connectors
Intercom Line: (2) 3-pin XLR–M–F
Pin 1: Common
Pin 2: Power (+28V DC)/PL Ch-A
Pin 3: PL Ch-B
Headset: 4-pin XLR–M
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3:
Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Program Audio Input: 3.5mm TRS Mini-Jack. Balanced Mono Input
• Power
Input Voltage Range: 12-30V DC
Input Current (Idle): <=25mA
Input Current (Max): <=40mA
•
Call Voltage
16.5V DC
Minimum Voltage Needed: 3.3V
• Environmental
32° - 158°F (0°- 70°C)
• Dimensions
3.4 x 4.5 x 1.7in (HxWxD)
(86 x 114
x 43mm)
• Weight
10.8oz (0.31kg)
