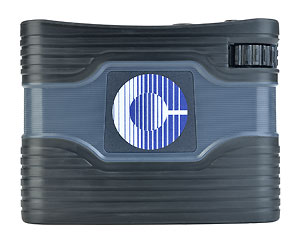

Clear-com RS-701 1-Channel Wired Beltpack

Clear-com RS-701 is a single-channel analog beltpack that can carry power and audio through the XLR-3 line connector. Each beltpack combines high headroom, low-noise audio and shaped frequency contour (the “Clear-Com Sound”) to deliver clear audio.


The RS-701 features LEDs on the top of the beltpack for visual indication of incoming and
outgoing call signaling. A mic preamp enables intelligible voice communication for every volume level. Recessed rotary volume control, Talk and Call keys guard against accidental activation. The RS-701 has a low operating current to allow for more beltpacks in a daisy-chain.

DIP Switches and LEDs

A concealed DIP switch panel on the back of the beltpack allows the capability to select audio and key options quickly and easily. DIP switches can control features such as switching between electret or dynamic headsets, setting a minimum or off level for headphone output, adjusting volume settings, enabling or disabling LED signals, having Call on Talk or latching
the Talk key. A green LED indicates that the beltpack is powered and a green LED on the Talk key indicates that the microphone is active (Talk is latched). An amber LED indicates a Call signal on the channel.

Improved Design

The RS-701 is designed in a rugged and reliable casing able to connect to RS-500 Series
beltpacks. A belt clip allows a variety of ways to use the beltpack; users can clip it to a belt or lanyard, or users can mount the belt clip to a wall, pole or desk for fixed installations.


The RS-701 is compatible with all Encore partyline products, as well as the PL-Pro line and
other partyline systems via Encore interfaces.


• Visual LED indicators on top of keypad
• Tactile buttons for Call and Talk
• Recessed rotary controls for Volume with end stops
• Concealed, programmable DIP switches for Latch Talk, Talk with Call, LEDs Off, Mic Gain, Mic Type and HP Level Off
• Fully compatible with current and previous models of Clear-Com analog partyline systems
• Low operating current for more beltpack daisy-chaining
• Rugged and strong construction
• “Clear-Com Sound” for intelligible audio

Microphone Pre-Amplifier

Mic to Line (without limiter acting)

Frequency Response: 280 – 15kHz ± 3dB

Microphone output to line – Audio Level (-50dBm Electret input): -9dBm

Microphone output to line – Distortion: <0.1%

Microphone output to line – Signal to Noise: >65dB

Headphone Pre-Amplifier

Frequency Response – Line to Headphone: 150 – 20kHz ± 3dB

Headphone input from line – Audio Level (-9dBm Electret input): 3.5dBm

Headphone input from line – Distortion: <0.5%

Headphone input from line – Signal to Noise: >50dB

Earphone to Mic – Crosstalk: >80dB

Sidetone – Adjustment Range (-80db mic input): >45dB

• Keypad Indicators

Power: Green LED

Talk: Green LED

Call: Orange LED

• Connectors

Intercom Line: (2) 3-pin XLR–M–F

Pin 1: Common

Pin 2: PL Power (+28V DC)

Pin 3: Line (Audio)

Headset: 4-pin XLR–M

Pin 1: Mic - (Mic Common)

Pin 2: Mic +

Pin 3: Spkr-

Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)

• Power

Input Voltage Range: 12-30V DC

Input Current (Idle): <=12mA

Input Current (Max): <=28mA

• Call Voltage

16.5V DC Minimum Voltage Needed: 3.3V

• Environmental

32°F - 158°F (0°C - 70°C)

• Dimensions

3.4 x 4.5 x 1.7in (HxWxD)

(86 x 114 x 43mm)

• Weight

10.5oz (0.30kg)
