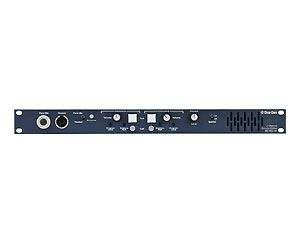

Clear-com RM-802-IM Two-Channel Remote Station

Clear-com RM-802-IM Two-Channel Remote Station

Clear-com RM-802-IM is a 1RU two-channel remote station with programmable front panel buttons and individual channel volume control. The RM-802-IM is powered directly from the intercom line and requires no external AC power. Unlike the MS-802-IM, the RM-802-IM has no power supply, circuit breaker or linking function.

Monitoring System

The RM-802-IM can monitor intercom activity on one or both channels with individual volume level controls. Monitoring intercom activity is possible through a headset or the internal high sensitivity loudspeaker.

Talk Selection

The RM-802-IM has mic pre-amps with limiters. An individual electronic momentary/latching Talk button is available for each channel. Illuminated dual-action Talk buttons light an LED dimly when latched: blue-color while in standby, amber-color when latched. The latching feature can be disabled. The channels can be accessed separately or simultaneously without tying them together. A selector switch toggles between the headset or microphone. The Talk buttons can also be controlled with a footswitch.

Call Signaling

The RM-802-IM features individual call buttons and visual call signaling to attract the attention of operators who have removed their headsets or turned off their speakers. The visual signal flashes the illuminated Talk button when a call is received. The call signaling feature can be programmed to the Talk buttons.

• Selectable one- or two-channel communication
• IP20 environmental rating
• Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
• Marine Certification compliant with DNVGL-CG-0339 (2016)
• Visual call signaling
• Balanced audio input with program interrupt (IFB)
• Optional plug-in gooseneck mic
• Built-in speaker

• Panel Microphone Input

Panel Microphone Input
Input Type: Electret
Input Impedance: >=2K
Mic Limiter Threshold: 0dBu ±3dB
Mic Limiter Range: >= 20dB

Headset Microphone Input

Input Type: Dynamic
Input Impedance: >= 1K
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 15dB

• Program Line Input

Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K

• Headset Output

Load Impedance: >= 8
Output Impedance: <= 25 Output Limiter Threshold: +5dBu ± 3dB
Maximum Output Level before Distortion: >= 17dBu

• Speaker Output

Load Impedance: >= 4
Max Output Level before 1% Distortion: 20dBu ± 2dBu

• Partyline Output

Output Noise: < -74dBu
Output Impedance: >10K

• Partyline Input

Crosstalk: < -60dB
Max level before Clipping: >= 12dBu
Sidetone Null Capability: > 25dB

• Stage Announce/Balanced Line Out

Type: Balanced
Output Impedance: >= 200
Load Impedance: >= 600

• IFB/Hot Mic

Type: Unbalanced
Output Impedance: 180
Load Impedance: >= 600

• Frequency Response

Panel Mic - Partyline: 600 - 10kHz ± 3dB
Headset Mic - Partyline: 200 - 12kHz ± 3dB
Headset Mic - Line Out: 200 - 12kHz ± 3dB
Program Input - Partyline: 100 - 17kHz ± 3dB
Program Input - Headset Out: 200 - 10kHz ± 3dB
Program Input - Speaker Out: 300 - 10kHz ± 3dB
Partyline - Headset Out: 200 - 10kHz ± 3dB
Partyline - Speaker Out: 300 - 10kHz ± 3dB

• Max Distortion

Panel Mic - Partyline: <= 0.5%
Headset Mic - Partyline: <= 0.5%
Headset Mic - Line Out: <= 0.5%
Program Input - Partyline: <= 0.2%
Program Input - Headset Out: <= 0.2%
Program Input - Speaker Out: <= 0.5%
Partyline - Headset Out: <= 0.2%
Partyline - Speaker Out: <= 0.5%

• Noise

Panel Mic - Partyline: < -65dBu
Headset Mic - Partyline: < -70dBu
Headset Mic - Line Out: < -55dBu
Program Input - Partyline: < -85dBu
Program Input - Headset Out: < -60dBu
Program Input - Speaker Out: < -60dBu
Partyline - Headset Out: < -50dBu
Partyline - Speaker Out: < -50dBu

• Max Gain

Panel Mic - Partyline: >= 37dB
Headset Mic - Partyline: 41dB ± 2dB
Headset Mic - Hot Mic Out: 55dB ± 3dB
Headset Mic - Announce Out: 55dB ± 3dB
Program Input - Partyline: >= -16dB
Program Input - Headset Out: >= 18dB
Program Input - Speaker Out: >= 24dB
Partyline - Headset Out: >= 34dB
Partyline - Speaker Out: >= 40dB

• Min Gain

Panel Mic - Partyline: <= 25dB

• Power

Input Voltage Range: 20-30V DC
Input Current (Idle): <= 90mA
Input Current (Max): <=110mA

• Environmental

32 - 122°F (0 - 50°C)
Relative Humidity: 0 - 96%, non-condensing
Vibration Frequency Range: 2 - 13.2Hz
Amplitude: 1.0mm
Peak Value Frequency Range: 13.2 - 100Hz
Acceleration Amplitude: 0.7 g
EMC: DNVGL-CG-0339 - Class B
Enclosure: IP-20

• Dimensions

1.75 x 19 x 7.0in (HxWxD)
(44 x 483 x 178mm)

• Weight

5.2lbs (2.4kg)

• Certifications and Compliance

This device complies with part 15 of the FCC Rules.
This device complies with European Union CE Mark:
Electromagnetic Compatibility Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
RoHS Directive 2011/65/EU
Standards: EN 55032, EN 55024, EN 60950-1, EN 50581

• This device complies with Maritime Certification:

Conformity with DNVGL-CG-0339 Edition November 2016
Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
Compass Safety Distance conformity per DNVGL-CG-0339 and IEC 6094
