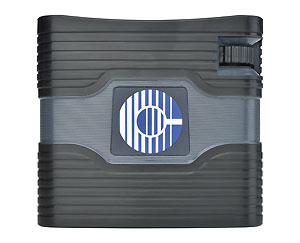

Clear-com RS-801-IM Single Channel Beltpack
Clear-com RS-801-IM is a single-channel analog
beltpack that can carry power and audio through the XLR-3 line connector.
Each beltpack combines high headroom, low-noise audio and shaped frequency
contour (the “Clear-Com Sound”) to deliver clear audio.
Clear-com
RS-801-IM features LEDs on the top of the beltpack for visual indication of
incoming and outgoing call signaling. A mic preamp enables intelligible
voice communication for every volume level. Recessed rotary volume control,
Talk and Call keys guard against accidental activation. The RS-801-IM has a
low operating current to allow for more beltpacks in a daisy-chain.
• Single channel analog beltpack
• IP53 environmental rating for
weather-proofing
• Sealed for salt-mist and humidity
• Asbestos-free
in accordance with SOLAS Regulation II-I/3-5.2
• Marine Certification
compliant with DNVGL-CG-0339 (2016)
• Visual LED indication on top of
keypad
• Tactile buttons for Call and Talk
• Recessed rotary control
for Volume
• Concealed, programmable DIP Switches
• Low operating
current for more beltpack daisy-chaining
• Fully compatible with current
and previous models of Clear-Com analog partyline systems
• Rugged and
strong construction
• “Clear-Com Sound” for intelligible audio
dBu is an absolute measurement. 0dBu is referenced to 0.775 volts RMS
Microphone Pre-Amplifier
Mic to Line
(without limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input):
-9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Headphone Pre-Amplifier
Frequency Response – Line to
Headphone: 150 – 20k Hz ± 3dB
Headphone input from line – Audio
Level (-9dBm Electret input): 3.5dBm
Headphone input from line –
Distortion: <0.5%
Headphone input from line – Signal to Noise:
>50dB
Earphone to Mic – Crosstalk: >80dB
Sidetone –
Adjustment Range (-80db mic input): >45dB
Keypad
Indicators
Power: Green LED
Talk: Green LED
Call: Orange LED
Connectors
Intercom
Line: (2) 3-pin XLR–M–F Ch. 1 2-Wire
Intercom Channel
Pin 1: Common
Pin 2: PL Power (+28VDC)
Pin 3: Line
(Audio)
Headset: 4-pin XLR–M
Headset Connector
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3:
Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin
1)
Power Requirements
Input Voltage
Range: 12-30V DC
Input Current (Idle): <=12mA
Input
Current (Max): <=28mA
Call Voltage
16.5V
DC
Minimum Voltage Needed: 3.3V
Environmental
32°F - 140°F (0°C - 60°C)
Relative Humidity: 0 - 96%,
non-condensing
Vibration Frequency Range: 2 - 13.2Hz
Amplitude: 1.0mm
Peak Value Frequency Range: 13.2 - 100Hz
Acceleration Amplitude: 0.7g
EMC: DNVGL-CG-0339 - Class A
Enclosure: Salt-mist IP-53
Dimensions
3.4
x 4.5 x 1.7in (HxWxD)
(86 x 114 x 43mm)
Weight
10.5oz (0.30kg)
Certifications and Compliance
This device complies with part 15 of the FCC Rules.
This device complies with European Union CE Mark:
•
Electromagnetic Compatibility Directive 2014/30/EU
• Low Voltage
Directive 2014/35/EU • RoHS Directive 2011/65/EU
• Standards: EN
55032, EN 55024, EN 60950-1, EN 50581
This device
complies with Maritime Certification:
• Conformity with
DNVGL-CG-0339 Edition November 2016
• Asbestos-free in accordance
with SOLAS Regulation II-I/3-5.2
• Compass Safety Distance
conformity per DNVGL-CG-0339 and IEC 60945
