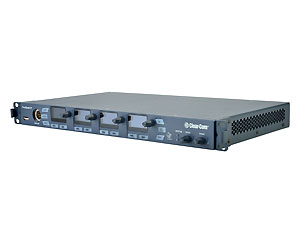

Clear-com FSII-BASE-II-5 FreeSpeak II Base Station
Clear-com FreeSpeak II BASE II-5 is a base station
for the wireless FreeSpeak II 1.9 GHz
and 2.4 GHz active transceivers and
beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline
connection, four 4-wire audio connections and four displays with soft keys.
Dedicated stage announce (SA) output and program audio input are provided.
Operation
A single base station can operate using a mix of
both 1.9 GHz and 2.4 GHz FreeSpeak II active transceivers to support five
1.9 GHz and/or 2.4GHz beltpacks and up to 10 active transceiver via two
transceiver splitters (FSII-SPL). The user interface supports system
configuration and system monitors along with a main station mode with Talk
and Call soft keys. A dedicated headset jack is included for communications
and monitoring from the front panel. Access to channels and other functions
are assignable through the menu on the base station or through the Core
Configuration Manager (CCM) browser-based tool.
• Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
• Routing and configuration of up to 5 FreeSpeak II beltpacks
• Four
2-wire ports with call signal, auto nulling (Clear-Com and RTS)
•
Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
• Multi-mode user interface has monitoring, setup and main station modes
with assignable soft keys
• Matrix and partyline configurations support
up to 12 channels and/or groups
• GPIOs allow assignment to trigger cue
lights, tally or radios
• DECT Sync ports for optimizing co-located
systems
• RF Audio Filter improves system performance in harsh RF
environments
• Browser-based Core Configuration Manager (CCM) with InSite
for real-time statistics, beltpack and transceiver diagnostics, and
functionality such as Remote Mic Kill
• Text messaging from CCM to
wireless beltpacks
Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
No. of Beltpacks per Base Station: 5
No. of Transceiver/ Antennas Supported by Base: 10
No. of Active Transceiver Ports: 2, one port can
remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port: 2 LAN RJ45
Relay
Port: DB15, supports one relay assigned to the SA out
Partyline A, B, C, D (each): XLR-3F, on/off termination
switch, Clear-Com and RTS compatible
Partyline Power
On/Off: A/B, C/D paired Partyline
Output
Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)
Four-Wire/Matrix Connection: 4 RJ45
Program Input: XLR-3F, transformer isolated, line-level input
Stage Announce Output: XLR-3M, transformer
isolated, line-level output
Front Panel Headset:
4-pin male and 5-pin female options
Front Panel Displays:
4 OLED’s with encoders and assignable soft keys
Front
Panel Indicators: Antenna Status, Beltpack Status External
Power Supply
Connection: 12V DC Base Station
Programming/Editing: Push-to-enter rotary encoder
|
