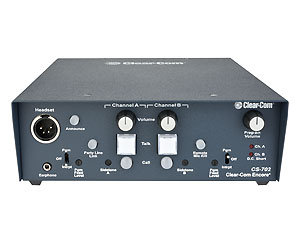

Clear-com CS-702 Two Channel Headset Main Station
Clear-com CS-702 is a 2-channel compact main
station that can monitor intercom activity on
one or both channels with
individual Listen Level controls. Monitoring intercom activity is
possible through a headset, or external earphone or speaker. The CS-702
supports up to
55 beltpacks or 7 speaker stations.
Talk Selection
The CS-702 contains a mic preamp with limiter and
proprietary speech-shaping circuits. An individual electronic
momentary/latching Talk button is provided for each channel and light dimly
when latched.
Call Signaling
The CS-702 provides individual Call buttons for
each channel to signal all stations on the
channel(s). When a remote
station operator sends a Call signal, the CS-702’s associated
Talk button
lights brightly, attracting the attention of an operator who have removed
their
headsets or turned off their speakers. Individual sidetone can be
adjusted for each channel.
Remote Mic Kill (RMK)
Pressing the Remote Mic Kill button will turn off
the microphone talk circuits of all beltpacks, eliminating noise from the
open headset microphones.
Program Input
The CS-702 has a balanced, mic or line-level
program signal for monitoring in the headset
and/or mixing the intercom
audio on one or both channels. The front panel provides a local
Program
Monitor volume control and individual Program Send level controls. It also
provides a Program Send on/off/interrupt switch for each channel. When
interrupt is
selected, program is interrupted when the Talk button is
pressed.
Power Supply and Supply System Protection
The CS-702 provides visual indication of power
supply conditions. In the event of a short
circuit or current overload,
the CS-702’s electronic overload protection circuit will shut down
the
output to avoid damage. As soon as the fault condition is removed, the
auto-reset circuitry
will automatically restore system power, even under
full-load conditions. There is no need to
disconnect stations to allow
the power supply to reset.
• Supports up to 55 beltpacks or 7 speaker stations on 2 channels
•
Automatic short-circuit protection and reset with LED indicators
•
Dual-action electronic momentary/latching Talk buttons
• Mic- or
line-level program with selectable Program Interrupt
• Remote Mic Kill
• Stage announce with relay
• Individual volume controls for each channel
• Front panel headphone connector
• Channel A & B Link switch to operate
as a one-channel system
• Front panel speaker output
• LED buttons for
Talk, Call, Announce, Link, All Talk, or Mic On
• Headset Microphone
Input Type: Dynamic
Input Impedance: >= 1K
Mic Limiter Threshold: 0dBu ± 3dB
Mic Limiter Range: >= 15dB
• Program Line Input
Maximum Level before Clipping: >= 20dBu
Input Impedance: >= 5K
• Program Mic Input
Maximum Level before
Clipping: >= -35dB
Input Impedance: >= 1K
•
Headset Output
Load Impedance: >= 8
Output
Impedance: <= 25
Output Limiter Threshold: +5dBu ± 3dB
Maximum Output Level before Distortion: >= 17dBu
•
Partyline Output
O Noise: < -74dBu
Output
Impedance: >10K
• Partyline Input
Crosstalk: <-60dB
Max level before Clipping: >= 12dBu
Sidetone Null Capability: > 25dB
• Stage
Announce/Balanced Line Out
Type: Balanced Output
Impedance: >= 200
Load Impedance: >= 600
•
Frequency Response
Headset Mic - Partyline: 200 - 18KHz
± 3dB
Headset Mic - Line Out: 200 - 18KHz ± 3dB
Program
Input - Partyline: 200 - 20KHz ± 3dB
Program Input - Headset Out:
200 - 18KHz ± 3dB
Partyline - Headset Out: 200 - 18KHz ± 3dB
• Max Distortion
Headset Mic - Partyline: <= 0.5%
Headset Mic - Line Out: <= 0.5%
Program Input - Partyline: <= 0.2%
Program Input - Headset
Out: <= 0.2%
Partyline - Headset Out: <= 0.2%
•
Noise
Headset Mic - Partyline: < -70dBu
Program
Input - Partyline: < -85dBu
Program Mic - Partyline: < -70dBu
Program Input - Headset Out: < -60dBu
Program Mic - Headset
Out: < -40dBu
Partyline - Headset Out: < -50dBu
•
Max Gain
Headset Mic - Partyline: 41dB ± 2dB
Headset Mic - Announce Out: 55dB ± 3dB
Program Input - Partyline:
>= -16dB
Program Mic - Partyline: 41dB ± 2dB
Program Input
- Headset Out: >= 18dB
Program Mic - Headset Out: >= 70dB
Partyline - Headset Out: >= 34dB
• Mains Power
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50
- 60Hz
Input Power: <= 60V AC
Output Voltage: 30VDC ± 0.5V
Output Current per Channel (Continuous): 1.2A
•
Output Current per Channel
(Peak): 2 A (Do not exceed
the 1.2A rating for more than 2 seconds per 1 minute period)
Short Circuit Recovery Time (1st short):<= 0.5 sec
Short Circuit
Recovery Time >= 20 shorts in 20sec):<= 20 sec
•
Environmental
32 - 122°F (0 - 50°C)
•
Dimensions
3 x 8.5 x 10in (HxWxD)
(76 x 216 x
254mm)
• Weight
5.0lbs (2.3kg)
