Clear-com FSII-Base-II Base Station

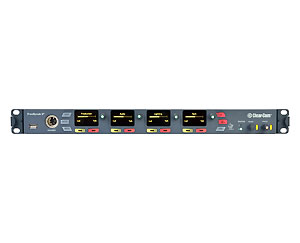

Clear-com FSII-BASE-II FreeSpeakII Base Station

Clear-com FreeSpeak II BASE II is a base station for the wireless FreeSpeak II 1.9 GHz and 2.4 GHz active transceivers and beltpacks. The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections and four displays with soft keys. Dedicated stage announce (SA) output and program audio input are provided.

Operation

A single base station can operate using a mix of both 1.9GHz and 2.4GHz FreeSpeak II active antenna transceivers to support up to 25 1.9 GHz and/or 2.4GHz beltpacks and 10 active transceivers via two transceiver splitters (FSII-SPL). The user interface supports system configuration and system monitors along with a main station mode with Talk and Call soft keys. A dedicated headset jack is included for communications and monitoring from the front panel. Access to channels and other functions are assignable through the menu on the base station or through the Core Configuration Manager (CCM) browser-based tool.

• Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
• Routing and configuration of up to 25 FreeSpeak II beltpacks
• Four 2-wire ports with call signal, auto nulling (Clear-Com and RTS)
• Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
• Fiber transceiver connections, supports two fiber-enables FSII splitters
• Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
• GPIOs allow assignment to trigger cue lights, tally or radios
• Matrix and partyline configurations support up to 12 channels and/or groups
• DECT Sync ports for optimizing co-located systems
• RF Audio Filter improves system performance in hard RF environments
• Browser-based Core Configuration Manager (CCM) with InSite for real-time statistics, beltpack and transceiver diagnostics, and functionality such as Remote Mic Kill
• Text messaging from CCM to wireless beltpacks

Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz

No. of Beltpacks per Base Station: 25

No. of Transceiver/ Antennas Supported by Base: 10

No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver

PC Programming Port: 2 LAN RJ45

Relay Port: DB15, supports one relay assigned to the SA out

Partyline A , B, C ,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible

Partyline Power On/Off: A/B, C/D paired

Partyline Output Voltage: 26 - 28V DC, 400mA per pair (A/B or C/D)

4-Wire/Matrix Connection: 4 RJ45

Program Input: XLR-3F, transformer isolated, line-level input

Stage Announce Output: XLR-3M, transformer isolated, line-level output

Front Panel Headset: 4-pin male and 5-pin female options

Front Panel Displays: 4 OLED’s with encoders and assignable soft keys

Front Panel Indicators: Antenna Status, Beltpack Status

External Power Supply Connection: 12V DC Base Station

Programming/Editing: Push-to-enter rotary encoder

Power

Input: 100-240V AC, 1.4A max

Output: 12V DC, 60W,

5A Current Draw: 12V, 4A max, 48W max

Dimensions

1.75 x 19.0 x 10.2in (HxWxD)

(44 x 483 x 259mm)

Weight

5.57lbs (2.5kg)
