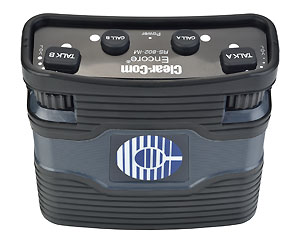

Clear-com RS-802-IM Two-Channel Beltpack
Clear-com RS-802-IM is a two-channel analog
beltpack that can carry power and audio through the XLR-6 line connector.
Each beltpack combines high headroom, low-noise audio and shaped frequency
contour (the “Clear-Com Sound”) to deliver clear audio.
Operation
The RS-802-IM features LEDs on the top of the
beltpack for visual indication of incoming and outgoing call signaling. A
mic preamp enables intelligible voice communication for every
volume
level. Recessed rotary volume control, Talk and Call keys guard against
accidental
activation. The RS-802-IM has low operating current to allow
for more beltpacks in a daisy-chain. Additionally, a thumbwheel level
adjustment is available for Program In.
DIP Switches and LEDs
A concealed DIP switch panel on the back of the
beltpack allows the capability to select
audio and key options quickly
and easily. DIP switches can control features such as switching
between
electret or dynamic headsets, setting a minimum or off level for headphone
output,
adjusting volume settings, enabling or disabling LED signals,
having Call on Talk or latching
the Talk key for Channel A, having Call
on Talk or latching the Talk key for Channel B, Channel B Minimum Volume
setting. A green LED indicates that the beltpack is powered and a green LED
on the Talk key indicates that the microphone is active (Talk is latched).
An amber LED indicates a Call signal on the channel.
Improved Design
The RS-802-IM is designed in a rugged, reliable,
IP53 water, salt-mist, and dust resistant
casing. A belt clip allows a
variety of ways to use the beltpack; users can clip it to a belt or
lanyard, or users can mount the belt clip to a wall, pole or desk for fixed
installations.
Compatibility
The RS-802-IM is compatible with all Clear-Com
Encore® partyline products, as well as the
PL-Pro line and other
partyline systems via Encore interfaces.
• IP53 environmental rating for weather-proofing
• Sealed for
salt-mist and humidity
• Asbestos-free in accordance with SOLAS
Regulation II-I/3-5.2
• Marine Certification compliant with
DNVGL-CG-0339 (2016)
• XLR-3 line connectors for two-channel +
Program Audio
• Consealed, programmable DIP Switches
• Low
operating current for more beltpack daisy-chaining
• Rugged and
strong construction
• "Clear-Com Sound" for intelligible audio
dBu is an absolute measurement. 0dBu is referenced to 0.775 volts RMS
Microphone Pre-Amplifier
• Mic to Line (without
limiter acting)
Frequency Response: 280 – 15kHz ± 3dB
Microphone output to line – Audio Level (-50dBm Electret input):
-9dBm
Microphone output to line – Distortion: <0.1%
Microphone output to line – Signal to Noise: >65dB
Clear-Com
Sound: Yes
• Headphone Amplifier
Frequency Response – Line to Headphone: 150 – 20kHz ± 3dB
Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
Headphone input from line – Distortion: <0.5%
Headphone input
from line – Signal to Noise: >50dB
Earphone to Mic – Crosstalk:
>80dB
Sidetone – Adjustment Range (-80db mic input): >45dB
• Keypad Indicators
Power: Green LED
Talk A and B: Green LED
Call A and B: Orange LED
• Connectors
Intercom Line: (2) 6-pin
XLR–M–F Switchcraft pin layout*
Pin 1: Common
Pin 2: PL
Power (+28V DC)
Pin 3: PL Ch-B
Pin 4: PL Ch-A
Pin
5: Program Audio +
Pin 6: Program Audio - Each intercom channel
should be an individually shielded pair
Headset: 4-pin XLR–M
Pin 1: Mic - (Mic Common)
Pin 2: Mic +
Pin 3: Spkr-
Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
• Power
Input Voltage Range: 12-30V DC
Input Current (Idle): <=25mA
Input Current (Max): <=40mA
• Call Voltage
16.5V DC
Minimum
Voltage Needed: 3.3V
• Environmental
32° - 140°F (0° - 60°C)
Relative Humidity: 0 - 96%,
non-condensing
Vibration Frequency Range: 2 - 13.2Hz
Amplitude: 1.0mm
Peak Value Frequency Range: 13.2 - 100Hz
Acceleration Amplitude: 0.7g
EMC: DNVGL-CG-0339 - Class A
Enclosure: Salt-mist IP53
• Dimensions
3.4 x 4.5 x 1.7in (HxWxD)
(86 x 114 x 43mm)
•
Weight
10.5oz (0.30kg)
