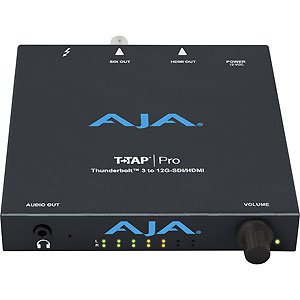

AJA T-TAP PRO Thunderbolt™ 3 Converter with 12G-SDI and HDMI 2.0 Output

AJA T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.

10- and 12-bit, up to UltraHD and 4K 60p

AJA’s T-TAP Pro provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt 3 to deliver high-quality 10- and 12-bit up to UltraHD or 4K 60p video and embedded audio output from any compatible Mac or PC.

HDR Support

T-TAP Pro directly supports HDR dependent monitoring workflows across a number of HDR formats, including HLG (Hybrid Log Gamma), PQ and HDR10.

AJA’s Desktop software v16 now offers HDR over SDI with VPID signaling of SDR and HDR characteristics. A new HDR Tab in AJA Control Panel, now signals HDR over both SDI and HDMI simultaneously.

For playback, AJA Control Room reads HDR metadata embedded in .mov files and uses that to auto-set Control Panel to signal HDR accordingly, simplifying the workflow chain.

With T-TAP Pro and the appropriately captured/rendered HDR files, AJA Control Room can automatically detect the HDR format and T-TAP Pro can automatically adjust it’s output accordingly via both 12G-SDI or HDMI.

4K Closed Caption Support

AJA Control Room software now supports ingest and playback of 4K content that carries Closed Captions when using T-TAP Pro.

Thunderbolt 3 Connectivity

Simple to set up and use, T-TAP Pro’s Thunderbolt 3 port easily connects to a wide range of Apple and Windows laptops and desktops, providing instant professional video and audio output from your favorite creative application.

Thunderbolt 3 is ubiquitous across both Mac and Windows computers, and supports the massive bandwidth needed for professional 4K video, audio, data and more.

Professional Outputs

T-TAP Pro features 12G-SDI and HDMI 2.0 outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer monitors.

Extensive Software Support

T-TAP Pro is compatible with a broad array of software, including but not limited to Apple Final Cut Pro, Adobe Applications such as Premiere Pro and After Effects, plus Avid Media Composer and Pro Tools. AJA’s driver support ensures that you are up and running with the latest releases, with an ongoing commitment to future updates and enhancements via free, new firmware updates.
