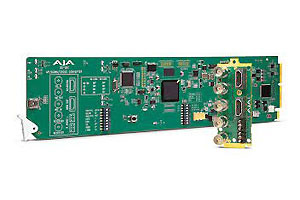

OG-UDC 3G-SDI Up, Down,
Cross-Converter
AJA OG-UDC is an openGear
10-bit broadcast quality up, down, cross-converter
that bridges HD and SD video resolutions. The OG-UDC
provides 3G-SDI input and output, HDMI output and
two 3-pin terminal block connectors for analog audio
outputs.
Designed for use in high density
openGear 2RU frames including AJA’s OG-X-FR frame,
DashBoard software support on Windows®, macOS® and
Linux® offers remote control and monitoring of the
openGear architecture and provides convenient and
industry standard configuration, monitoring and
control options over a PC or local network.
Features:
• openGear compatible
card
• Converts between SD, HD, and 3G HD formats
• Very high quality conversions
• Loss of Input
management: Freeze, Black, or Mute
• Supports
1080p50/60
• 16-channel embedded SDI audio input
and output
• 2x 3-Pin Terminal Block connectors
(included)
• Reference Input
• Remote
configuration through DashBoard Control System for
an openGear frame
• Local configuration through
DIP Switches
• Rear I/O card included
•
Compatible with OG-X-FR, OG-3-FR and DFR-8321
openGear frames
| Video Formats |
(2K) 2048 x 1080p
(2K) 2048 x 1080PsF
(HD) 1920 x 1080p
(HD) 1920 x 1080PsF
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 625i
(SD) 720 x 576i
(SD) 720 x 480i |
| Video Input Digital |
1x 3G-SDI BNC, SMPTE-259/292/372/424
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 720x576i 50, 59.94, 60
|
| Video Output Digital |
1x 3G-SDI BNC, SMPTE-259/292/372/424
- (HD) 1080p 23.98 (for 23.98 video inputs)
- (HD) 1080p 24 (for 24 video inputs)
- (HD) 1080p 25 (for 50 video inputs)
- (HD) 1080p 29.97 (for 59.94 video inputs)
- (HD) 1080p 30 (for 60 video inputs)
- (HD) 1080p 50 (for 50 video inputs)
- (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 1080p 60 (for 24, 30 or 60 video inputs)
- (HD) 1080PsF 23.98 (for 23.98 video inputs)
- (HD) 1080PsF 24 (for 24 video inputs)
- (HD) 1080PsF 25 (for 50 video inputs)
- (HD) 1080PsF 29.97 (for 59.94 video inputs)
- (HD) 1080Psf 30 (for 30 or 60 video inputs)
- (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
- (HD) 1080i 60 (for 24, 30, or 60 video inputs)
- (HD) 1080i 50 (for 25 or 50 video inputs)
- (HD) 720p 50 (for 50 video inputs)
- (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 720p 60 (for 24, 30, or 60 video inputs)
- (SD) 625i 50 (for 25 or 50 fps video inputs).
- (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
|
| Reference Input |
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75 ohm terminating
|
| HDMI Output |
10-bit HDMI v1.4a |
| Audio I/O |
16-Channel embedded SDI audio input
16-Channel embedded SDI audio output
8-Channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal blocks connectors |
| User Controls |
External DIP switch
OpenGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) |
openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 3.0 watts max per card |
| Environment |
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet) |
|
