AJA V2Digital Analog to HD/SD-SDI Mini-Converter

Home > Main > Convert > V2Digital

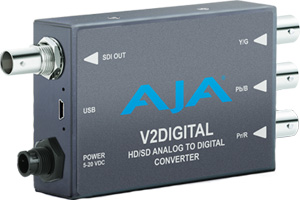

  • AJA V2Digital Mini-Converter
    Product Code:V2DIGITAL
    Buy Sell Sales AJA V2Digital Mini-Converter
    review button

  • Features
    - 10-bit AJA quality Analog to Digital conversion
    - Low power, compact size
    - YPbPr/RGB Component or Composite input
    - HD/SD-SDI output
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty
AJA V2Digital: Overview
AJA V2Digital is a high-quality, cost-effective analog to digital video converter that's perfect for facilities needing to integrate signal types. AJA V2Digital provides AJA's high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only analog to digital signal conversion is supported.

Breakthrough price performance
AJA V2Digital provides AJA's high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions all at an extraordinary price.

Extensive format support
V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs so no matter what signal comes your way, you'll be ready to work with it.

Pristine image quality
AJA V2Digital utilizes a 4-line Adaptive Comb Filter and a full 10-bit data path with 2x over sampling to provide the highest quality analog to digital conversion possible.

Specfications:
Formats 525i/625i, 1080i 50/59.94/60 Hz
1080PsF 23.98/24/25 Hz
720p 50/59.94/60 Hz
Inputs HD component YPbPr, RGB (SMPTE-274), BNC
SD component (Betacam,EBU-N10)/composite/YC(S-Video), BNC
Outputs HD/SD-SDI, SMPTE-259/292/296M, 1 x BNC
User Controls External Dipswitch
Control (Local/Remote)
Component/Composite (SD Only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD Only)
Power +5-20 VDC, 3 watts
Size 5.1" × 2.4" × 1" (130 × 61 × 25 mm)
