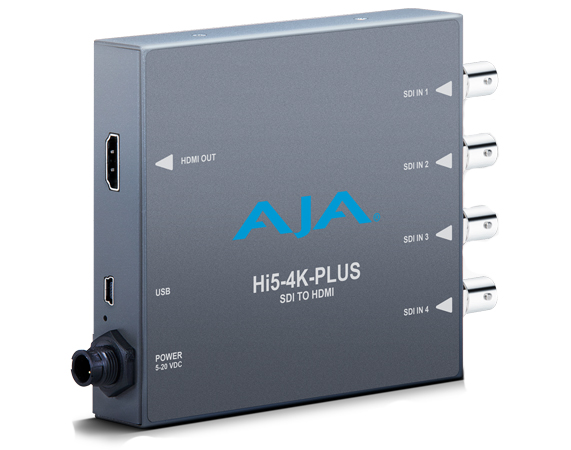

AJA Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0
conversion needs. The Hi5-4K-Plus can also generate HDR metadata in accordance with HDMI v2.0a/CTA-861.3.
Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with
HDMI 2.0 inputs, for cost-effective monitoring for 4:2:2/4:4:4 60p professional workflows.
Connectivity
The latest generation of affordable 4K monitors utilize an HDMI 2.0 connection, which allows a full 4K signal to be passed over a single cable.
Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer monitors.
AJA Hi5-4K-Plus is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.
Audio
Up to 8-channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor.
4K and UltraHD
Typical 4K signals use a resolution of 4096x2160 pixels while UltraHD signals measure 3840x2160. This difference can prevent some monitors from being used
either in full 4K workflows or in UltraHD workflows. AJA Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
HDR
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than
standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.
AJA Hi5-4K Plus provides this support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI
v2.0a/CTA-861.3. Hi5-4K also provides support for Hybrid Log-Gamma (HLG) HDR displays over HDMI.
HD Support
Not every job is a 4K job. When you're not working in 4K, AJA Hi5-4K-Plus can still be a useful tool for converting HD-SDI to HDMI. A single HD-SDI signal coming
into the Hi5-4K will be sent out as an HD resolution HDMI signal, much like AJA's Hi5-3G Mini-Converter.
|
| Features |
• 4 x 3G-SDI inputs
• Support for 4:2:2/4:4:4 HDMI 2.0 output
• HD conversion supported
• HDR support for HDR 10 and HLG
• Embedded audio support
• Configure via USB port and supplied MiniConfig software
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• 5-year warranty
|
| Technical Specifications |
| Video Formats |
(4K) 4096x2160p
(UltraHD) 3840x2160p
(2K) 2048x1080p
(HD) 1920x1080p
(HD) 1920x1080i
(HD) 1280x720p
(sD) 720x576i
(SD) 720x480i |
| Video Input Digital |
4 x 3G-SDI BNC, SMPTE-259/292/424
YCbCr 4:2:2/4:4:4
RGB 4:4:4, SMPTE or Full level
8- or 10-bit
Two Sample Interleave (2SI) or Square Division (Quadrant) source mapping
4 x 3 Gb SDI (Level A or B-Dual Link)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
*PsF is Level B-Dual Link
4 x 1.5 Gb SDI
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
2 x 3 Gb SDI (Level B-Dual Stream)
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
1 x 3 Gb SDI (Level A or B-Dual Link)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p* 50, 59.94, 60
*1280 x 720p is Level A Only
2 x 1.5 Gb SDI
(HD) 1920 x 1080p 50, 59.94, 60
1 x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
1 x 270 Mb SDI
(SD) 625i 25
(SD) 525i 29.97 |
| Video Output Digital |
1 x HDMI Type A connector*, HDMI v2.0
YCbCr 4:2:2/4:4:4/4:2:0
RGB 4:4:4, SMPTE or Full level
8 or 10 bit (HFR 4K/UltraHD 4:4:4 limited to 8 bit)
HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 25
(SD) 720 x 480i 29.97
*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio) |
| HDCP Encryption |
Not supported. By definition, SDI inputs are unencrypted.
The HDMI specification requires HDMI monitors to support unencrypted inputs. |
| Audio Input Digital |
SDI embedded audio, 24-bit, 8-Channel |
| Audio Output Digital |
HDMI embedded audio, 24-bit, 8-Channel |
| User Interface |
USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows. |
| Size (w x d x h) |
5.76" x 4.02" x 0.90" (146mm x 102mm x 23mm) |
| Weight |
0.6 lb (0.3 kg) |
| Power |
5-20VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input |
| Environment |
Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
*NOTE: Hi5-4K-Plus uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit,
mount in a location where it has access to air for proper cooling. Do not stack the Hi5-4K-Plus with other Mini-Converters. |
|
|
