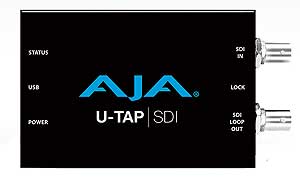

AJA U-TAP SDI Simple USB 3.0 Powered 3G-SDI Capture

AJA U-TAP SDI Simple USB 3.0 Powered 3G-SDI Capture

Product Code: U-TAP SDI

review button

• Compact and Portable
• 3G-SDI, SMPTE-259/292/424 Looping Input
• USB 3.0 connection to desktop or laptop
• Bus Powered through USB 3.0 interface
• Embedded Stereo Audio support
• Supported by OS on Mac, Windows and Linux
• 3 year warranty

The U-TAP 3G-SDI USB 3.0 capture devices brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP SDI is bus powered with the ability to simply and easily bring in video across 3G-SDI for use within a wide range of software without any drivers to install, as it’s supported directly in macOS X®, Windows® and Linux®.

Pocket Power
U-TAP SDI offers easy, cost effective and portable solutions for plug and play capture that is compatible with Windows, macOS and Linux operating systems and a broad range of creative applications. From video conferencing, streaming, social media, gaming and more, U-TAP SDI offers powerful functionality without requiring any third party driver software.

U-TAP SDI is smaller than a smartphone, with USB connectivity that provides a quick and easy way to connect SDI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.

U-TAP SDI provides an SDI looping output, allowing you to loop through the source SDI signal to monitors, switchers and more. U-TAP SDI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects.

Rugged and Reliable
U-TAP is small, rugged, reliable and backed by AJA's world renowned support. Small enough to fit in your pocket and with no power supply to carry, it can go with you anywhere.

Silence defined with no fans or moving parts, U-TAP won't detract from the recording or streaming experience, but quietly enhance it with automatic video scaling and aspect ratio conformity based on your application’s requirements, all the way up to 1080p 60.

U-TAP v1.5.2 Update

Introducing macOS Catalina Support
U-TAP v1.5.2 is available today as a free download for all U-TAP SDI and U-TAP HDMI USB 3.0-powered capture devices. The free upgrade increases workflow flexibility by introducing full macOS Catalina support, alongside several performance enhancements and important bug fixes.

U-TAP v1.5.2 Update

Video Formats Video (SDI)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p
1440 x 1080p
1280 x 720p
1024 x 576p
960 x 540p
856 x 480p
800 x 600p
768 x 576p
720 x 576p
720 x 480p
640 x 480p
640 x 360p
432 x 240p
352 x 288p
320 x 240p
176 x 144p
Video Input Digital 3G-SDI, SMPTE-259/292/424, YCbCr 4:2:2 (1 x BNC)
Video Loop Output 1 x 3G-SDI (1 x BNC)
Audio Input Digital 2-Channel, 24-bit SDI embedded audio, 48 kHz sample rate
Capture Video 16-bits/pixel, YUV (input video will be truncated as required)
Capture Audio 2-Channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
Host Interface USB 3.0/USB 2.0 UVC compliant
Size (w x d x h) 3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)
Weight 0.3 lb (0.2 kg)
Power 5V USB bus powered; 4W max
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
