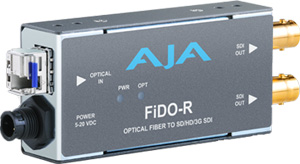

AJA FiDO-R LC Fiber to 3G-SDI Receiver

AJA FiDO-R
Single channel LC Fiber to 3G-SDI Receiver
sales1@expandore.com

AJA FiDO-R Single channel LC Fiber to 3G-SDI Receiver

Home > Main > Convert > FiDO-R

Product Code: FiDOR
Features
- Simplex connection (LC connector)
- SDI, HD-SDI or 3G OUTPUT
- Dual, matching SDI outputs

AJA FiDO-R: Overview
AJA FiDO-R Mini-Converters offer unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10km with electrical isolation - useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Specifications:

Formats	3Gb, 1.5Gb, 270Mb, Auto Select
Video Inputs and Outputs	SDI (SMPTE 259/292/424), BNC 1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T) 1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST) 1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC) 2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR) 4x Single mode optical fiber, ST connectors (FiDO-4R-ST, FiDO-4T-ST)
Cable Equalization (BNC Inputs, 1694 coax)	270mb, 400m 1.5Gb, 200m 3Gb, 140m
Input/Output Return Loss (BNC)	>15db, 270Mb - 3Gb
Optical Outputs	Wavelength: 13 10 nm Output Power: -2dBm typical
Size	4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) - FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC, FiDO-2R, FiDO-2T, FiDO-TR 4.6" x 4.10" x 0.92" (117 x 105 x 24mm) - FiDO-4T-ST, FiDO-4R-ST
Power	+5-20 VDC 1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC) 2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR) 4.0 watts (FiDO-4R-ST, FiDO-4T-ST) Requires Power Supply (AJA power supply model DWP-U-R1 included)
