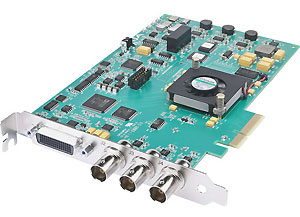

| Features of Kona LHe Plus |
Affordable, professional I/O
AJA KONA LHe Plus offers video professionals at all levels an affordable desktop I/O solution that doesn't compromise on quality or essential functionality. KONA LHe Plus supports both HD/SD analog and digital I/O for video and audio, providing maximum
capability, simplifying integrating analog and digital signals into a single workflow and multiple output options to ensure you can deliver whatever formats are required.
Versatile I/O
With support for 10-bit or 8-bit uncompressed video, AJA KONA LHE Plus features one input and two outputs which can be configured independently for HD or SD. KONA LHe Plus also includes 2-channel
AES digital audio, 8-channel SDI embedded digital audio, analog composite/S-video/SD/HD component video I/O, 2-channel balanced analog audio I/O, Genlock input, and three BNCs which may be
configured for analog video input and output (HD or SD).
AJA KONA LHe Plus supports RS-422 machine control via 9-pin connector.
Because the KONA LHe Plus supports 12-bit analog component HD input and output, devices with analog HD output, such as decks and even game consoles, can be connected for a variety of workflows.
Integrated AJA hardware conversion
AJA KONA LHe Plus features full 10-bit, broadcast-quality, motion-adaptive HD to SD down-conversion, and HD/SD 12-bit component analog output. The down-converter allows KONA LHe Plus to connect to analog SD devices for output. This can be used to check
framing and color for SD versions while still working in full resolution HD within your application, ensuring proper quality for multi-format deliveries. Since conversion is hardware-based, it's
available all the time - during ingest or playback.
Extensive software support
AJA KONA LHe Plus is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same KONA LHe Plus card to be used by many different applications on the same system. In addition, AJA provides several
free applications that enable you to utilize the power of the KONA LHe Plus card even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily.
Extend your Connectivity with KL-Box-LH
The optional KL-Box-LH breakout box let's you integrate KONA LHe Plus easily into rack environments for quick access to all video
and audio connections. Additional connectivity includes BNC digital AES/EBU connectors and RCA audio monitoring jacks.
|
| Technical Specifications of Kona LHe Plus |
| Video Formats |
•525i 29.97
•625i 25
•720P 50, 59.94, 60
•1080i 25, 29.97, 30
•1080PsF 23.98, 24, 25, 29.97, 30
•1080p 23.98, 24, 25, 29.97, 30
|
| Video Input Digital |
•SD/HD SDI, SMPTE-259/292/296, 8- or 10-bits
•Single Link 4:2:2 (1 x BNC)
|
| Video Input Analog |
•Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
•NTSC, NTSCJ, PAL
•Component (3 x BNC)
•HD: YPbPr, RGB
•SD: YPbPr, RGB (component mode)
•SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
•12-bit D/A, 2x oversampling
•+/- .2 dB to 5.0 MHz Y Frequency Response
•+/- .2 dB to 1 MHz C Frequency Response
•.5% 2T pulse response
•<1% Diff Phase
•<1% Diff Gain
•<1 ns Y/C delay inequity
|
| Video Output Digital |
•SD SDI, SMPTE-259M, 10-bit
•HD SDI, SMPTE-292/296, 10-bit
|
| Video Output Analog |
•Composite/S-Video (Y/C) (1 x BNC/2x BNC+adapter)
•NTSC, NTSCJ, PAL
•Component (3 x BNC)
•HD: YPbPr, RGB
•SD: YPbPr, RGB (component mode)
•SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
•12-bit D/A, 8x oversampling
•+/- .2 dB to 5.0 MHz Y Frequency Response
•+/- .2 dB to 1 MHz C Frequency Response
•.5% 2T pulse response
•<1% Diff Phase
•<1% Diff Gain
•<1 ns Y/C delay inequity
|
| Audio Input Digital |
•8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
•2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample
rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)
|
| Audio Input Analog |
•2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
•+24dbu Full Scale Digital
•+/- 0.2db 20 to 20kHz Frequency Response
|
| Audio Output Digital |
•8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
•2-channel, 24-bit AES/EBU audio, 48kHz or 96 KHz sample
rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)
|
| Audio Output Analog |
•2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 2 x XLR on breakout cable or optional KL-Box)
•+24dbu Full Scale Digital (0dbFS)
•+/- 0.2db 20 to 20kHz Frequency Response
•2-channel unbalanced output (via 2 x RCA jacks on optional KL-Box)
|
| Down-Conversion |
•Hardware 10-bit
•Anamorphic: full-screen
•Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
•Crop: image is cropped to fit new screen size
|
| Reference Input |
•Analog Color Black (1V) or Composite Sync (2 or 4V)
•Looping
•75 ohm on optional KL-Box, terminated on supplied breakout cable
|
|
|
