AJA LUT-Box In-line Color Transform

Home > Main > Convert > LUT-Box
  • AJA LUT-Box

    Product Code: LUTBOX

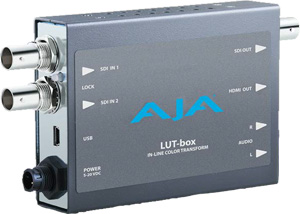

    AJA LUT-Box
    review button


  • Features

    - Ensure proper image monitoring on-set or in the studio
    - Simultaneous SDI and HDMI outputs
    - 3D LUT support at 17x17x17
    - +5 to 20V DC regulated, 8 watts max
    - 12-bit processing
    - 16-channel embedded SDI and 8-channel HDMI audio
    - 2-channel RCA analog audio output
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty

AJA LUT-Box: Overview
Load 3D LUTs into LUT-box to adjust the color look for any source signal with simultaneous outputs to HDMI and SDI monitors from a single AJA LUT-box.

In-line Color Transform
Working with material outside the normal REC709 video color space (such as LOG material) can cause confusion both on set and in the edit suite with colors that are not properly represented for client review and approval. AJA LUT-box ensures that every monitor is showing the correct color "look" for any source signal while still allowing the original footage to maintain its original color look and take advantage of additional dynamic range.

High-Quality File Formats
AJA LUT-box supports 16-point and 17-point 3D LUTs with 12-bit processing for accurate color representation.

In addition, a 10- or 12-bit 1D LUT can also be applied prior to the 3D LUT to allow for additional calibration or image enhancement before being processed by the 3D LUT.
Multiple LUT formats are supported including:
.3dl
.lut
.txt
.cube

Extensive Connectivity
AJA LUT-box accepts 3G and Dual-Link input in a wide range of signal formats. Simultaneous SDI and HDMI outputs allow multiple monitors to view the corrected color signal.

Audio Integration
Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

Specfications:
Video Inputs 3G-SDI with embedded audio (2 x BNCs)
HD single link
HD dual link
3G single link
YCbCr 4:2:2 8-bit and 10-bit, RGB 4:4:4 10-bit and 12-bit supported
Input Formats 3G-SDI Input
1920x1080p 4:2:2 50, 59.94, 60 Level A and Level B
2048x1080p 4:2:2 50, 59.94, 60 Level A and Level B
1920x1080p 4:4:4 23.98, 24, 25, 29.97, 30 Level B
1920x1080PsF 4:4:4 23.98, 24, 25, 29.97, 30 Level B
1920x1080i 4:4:4 50, 59.94, 60 Level B
2048x1080p 4:4:4 23.98, 24, 25, 29.97, 30 Level B
2048x1080PsF 4:4:4 23.98, 24, 25, 29.97, 30 Level B
HD-SDI Input
1920x1080p 4:2:2 23.98, 24, 25, 29.97, 30
1920x1080i 4:2:2 50, 59.94, 60
1920x1080PsF 4:2:2 23.98, 24, 25, 29.97, 30
2048x1080p 4:2:2 23.98, 24, 25, 29.97, 30
2048x1080PsF 4:2:2 23.98, 24, 25, 29.97, 30
1280x720p 4:2:2 50, 59.94, 60
HD-SDI Dual Link Input
2x1920x1080p 4:4:4 23.98, 24, 25, 29.97, 30
2x1920x1080PsF 4:4:4 23.98, 24, 25, 29.97, 30
2x2048x1080p 4:4:4 23.98, 24, 25, 29.97, 30
2x2048x1080PsF 4:4:4 23.98, 24, 25, 29.97, 30
2x1920x1080p 4:2:2 50, 59.94, 60
2x2048x1080p 4:2:2 50, 59.94, 60
Video Outputs 3G-SDI with embedded audio (1 x BNC)
HDMI with embedded audio, up to 36-bit Deep Color support (1 x HDMI 1.4 Type A)
Note: PsF inputs are always converted to progressive on the HDMI output. MiniConfig allows the SDI output to be set to either PsF or progressive for a PsF input signal.
Note: HDMI/DVI output is always RGB color space.
Audio Input Digital
SDI embedded audio, up to 8 channels
Audio Output Digital
SDI embedded audio, up to 8 channels
HDMI embedded audio, 2 or 8 channels

Analog
2-channel RCA-style (-10dBV nominal)
LUT File Format Support 10-bit and 12-bit 1D LUTs, and 12-bit 17 or 16 point 3D LUTs, are supported in these formats:
3D LUT file types:
.3dl
.cube
.lut
.txt
1D LUT file types:
.cube
.lut
.txt
Power Uses AJA Power Supply model DWP-U-R1 (included with purchase)
100-240V, 50/60Hz Universal Input
+5V DC regulated, 7.5 watt capacity
Size 5.8" × 3.1" × 1" (147mm × 79mm × 25mm)
