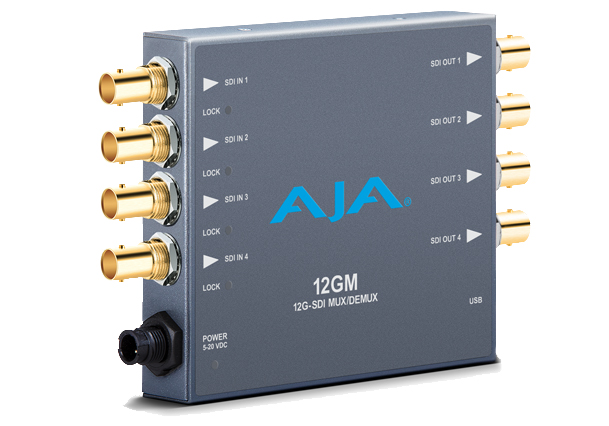

AJA 12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from
multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Quality - Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit
immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
|
| Features |
• Compact 12G to/from 3G conversion
• SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
• Converts SMPTE 425M A to/from SMPTE 425M B
• Fully equalizing and reclocking with jitter attenuation
• If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
• DWP-U-R1 power supply included
• Five Year warranty
|
| Technical Specifications |
| Video Formats |
(4K) 4096 x 2160p
(UltraHD) 3840 x 2160p
(2K) 2048 x 1080p
(HD) 1920 x 1080p
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 576i
(SD) 720 x 480i |
| Video Input/Output Digital |
4 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
YCbCr 4:2:2
8 or 10-bit
Two Sample Interleave (2SI) source mapping
1 x 12 Gb SDI
4 x 3 Gb SDI (Level A)
(4K) 4096 x 2160p 50, 59.94, 60
(UltraHD) 3840 x 2160p 50, 59.94, 60
1 x 6 Gb SDI
4 x 1.5 Gb SDI
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
1 x 3 Gb SDI (Level A)
(2K) 2048 x 1080p 50, 59.94, 60
(HD) 1920 x 1080p 50, 59.94, 60
1 x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
1 x 270 Mb SDI
(SD) 625i 25
(SD) 525i 29.97 |
| Support Conversions and Functions |
Quad 3G-SDI to Single 12G-SDI
Single 12G-SDI to Quad 3G-SDI
Quad 1.5G-SDI to Single 6G-SDI
Single 6G-SDI to Quad 1.5G-SDI
Pass through of Single Link 3G, 1.5G and 270M SDI video
Distribution Amplifier support (1x4)
Input signal diagnostics |
| Cable Equalization |
(Belden 1694A coax)
• 12 Gbps, 70m
• 6 Gbps, 100m
• 3 Gbps, 140m
• 1.5 Gbps, 200m
• 270 Mbps, 300m |
| Audio Input / Output Digital |
Passes SDI embedded audio, 24-bit, up to 16-Channels |
| User Interface |
USB port used with supplied cable and Mini-Config software application to configure device and access diagnostics via macOS or Windows |
| Size (w x d x h) |
5.76" x 4.02" x 0.90" (146mm × 102mm × 23mm) |
| Weight |
0.6 lb (0.3 kg) |
| Power |
5-20VDC regulated, 12 watts, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input |
| Environment |
Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
*12GM uses approximately 12 watts of power and convection cooling. It will be
very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters |
|
|
