AJA Kona 1 Streamlined Capture and Playback over 3G-SDI

Product Code: KONA1

AJA Kona 1
review button

Features
• Single Channel 3G-SDI Capture or Playback up to 2K/HD 60p
• Full size 3G-SDI BNC ports
• PCIe 2.0 2-lane
• Powerful creative applications support
• ANC Capture and Playback



AJA KONA 1

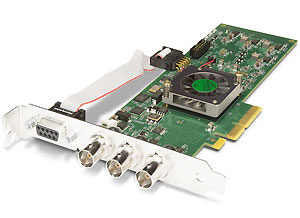

Designed for broadcast, post and ProAV, as well as OEM developers, KONA 1 is a robust, cost efficient single-channel 3G-SDI 2K/HD 60p I/O card with serial control and reference/LTC. KONA 1 features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support.

KONA 1 enables simultaneous monitoring during capture (pass-through) and includes: full size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio in/out, Genlock with reference/ LTC input and RS-422.

Powerful and Simple 3G-SDI Capture and Playback for 2K/HD up to 60p
AJA KONA 1 provides cost-effective and powerful professional 3G-SDI support for robust compatibility with Ingest, Editing and Visual Effects applications.

Capture, Monitor and Output frame accurately up to 2K 60p over 3G-SDI with Adobe, Avid, AJA Control Room and many more applications.

Reference and LTC spigots provide the professional frame stability and time code based reliability you need for broadcast, production, ProAV and creative finishing projects.


Workflow

Supporting macOS, Windows and Linux, AJA KONA 1 offers cost effective simple connectivity for a range of 2K/HD/SD workflows across 3G-SDI with video pass through on SDI out while capturing.


Powerful platforms for development partners.

AJA’s Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA’s expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

• Single Channel 3G-SDI Capture or Playback up to 2K/HD 60p
• Full size 3G-SDI BNC ports
• PCIe 2.0 2-lane
• Powerful creative applications support
• Available in low profile PCIe 2.0 without external RS422 port (OEM only)
• ANC capture and processing
• 8/10 Bit YCbCr and RGB framebuffer formats
• 16-ch SDI Embedded Audio I/O, 24-bit 48khz
• HD/SD Genlock, Reference Video or LTC Input (selectable)
• 3-year warranty

Video Formats • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080i 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
Video Input Digital

 • 3G-SDI, SMPTE 425
  RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
 • 1.5G-SDI, SMPTE 292M
  Single Link HD-SDI YCbCr 4:2:2 10-bit
 • 270 Mbps SDI, SMPTE 259M-C
  YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Video Output Digital  • 3G-SDI, SMPTE 425
  RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
 • 1.5G-SDI, SMPTE 292M
  Single Link HD-SDI YCbCr 4:2:2 10-bit
 • 270 Mbps SDI, SMPTE 259M-C
  YCbCr 4:2:2 10-bit, 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Audio Input Digital  • 16-channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital  • 16-channel 24-bit SDI embedded, 48 kHz synchronous
Reference / LTC Input  • Analog Color Black or HD Tri-level sync
 • LTC
Electrical Interface  • 2-lane PCIe 2.0
Machine control  • RS-422, Sony 9-pin protocol
 • 9-pin D-connector pinout is as follows:
1 GND
2 RX-
3 TX+
4 GND
5 No Connection
6 GND
7 RX+
8 TX-
9 GND
Shell GND

Size (w x d x h)  • T = 0.88" x 7.38" x 4.75" (22.36 x 187.46 x 120.65 mm)
 • S = 0.75" x 7.25" x 3.125" (19.05 x 184.15 x 79.36 mm)
Weight  • 0.3 lb (0.2 kg)
Environment  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
 • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
 • Operating Relative Humidity: 10-90% noncondensing
 • Operating Altitude: <3,000 meters (<10,000 feet)
