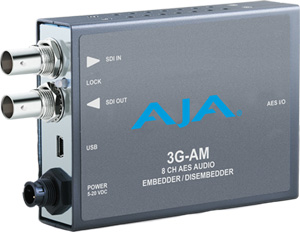

Specifications
| Video Input |
SDI, 1x BNC
HD SMPTE 292/296M
SD SMPTE 259M
3G SMPTE 424/425M |
| Input Formats |
1 x 3Gb SDI (level A or B)
2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048x1080psf 23.98, 24, 25, 29.97, 30
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 25, 29.97, 30
1280x720p 50, 59.94, 60
1 x 1.5Gb SDI
2048x1080p 23.98, 24, 25, 29.97, 30
2048x1080psf 23.98, 24, 25, 29.97, 30
1920x1080p 23.98, 24, 25, 29.97, 30
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 25, 29.97, 30
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1 x 270Mb SDI
525i
625i |
| Video Output |
SDI, 1x BNC |
| Output Formats |
Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
Video Latency
(time measured between video input and video output connector):
SD (270 Mb) = 17.2 usec
HD (1.5 Gb) = 6.3 usec
3G level A = 3.2 usec
3G level B = 6.1 usec |
| Audio Inputs and Outputs |
AES PCM Audio, 1 x 25 pin D female connector on converter, 8 channels in, 8 channels out, selectable in pairs.
Breakout cable provided with 1 x 25 pin D male connector:
4 x XLR female input breakout connectors (AES3 110 ohm)
4 x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats
AES3-2003
SMPTE 337M
Digital Audio Converters
24-bit
Embedded Audio
SMPTE 272M (SD): 20-bit, 48KHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
Incoming embedded audio can be passed, removed, or overridden.
Up to 16 channels supported.
NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio.
Embed Path Audio Latency
(time measured between audio input and video output connector):
1500 usec (SRC ON)
400 usec (SRC OFF)
Disembed Path Audio Latency
(time measured between video input and audio output connector):
210 usec |
| User Controls |
External DIP switch
USB port used with MiniConfig software application to configure device via PC/Mac |
| Power |
+5-20VDC, 5 watts. Power Supply Required (included with purchase) |
| Size |
5.8" x 3.1" x 1" (147 x 79 x 25 mm) |
| Environment |
Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: <2,500 meters (<8,000 feet)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) |
|
