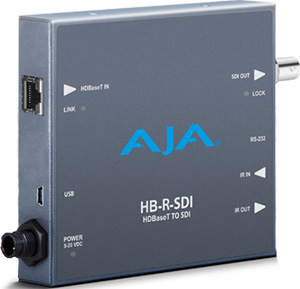

AJA HB-R-SDI HDBaseT to SDI Signal Extender

AJA HB-R-SDI
HDBaseT to SDI Signal Extender
sales1@expandore.com

AJA HB-R-SDI Converts HDBaseT to 3G-SDI Certified Signal Extender

Home > Main > Convert > HB-R-SDI

Product Code: HBRSDI
Features
- HDBaseT Certified Signal Extender
- Converts HDBaseT to 3G-SDI
- Extend uncompressed SDI signals up to 100m over CAT5 (or better) cable
- Configure via USB port and supplied Mini-Config software
- IR IN and OUT
- RS-232 device control connection

AJA HB-R-SDI: Overview
The AJA HB-R-SDI offer an easy solution for extending SDI signals up to 100 meters over CAT5 (or better) cable, utilizing the industry standard HDBaseT protocol. Bi-directional IR and RS- 232 for device control is also supported, making these Mini-Converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, post production/network/studio environments and on set.

Video Display
HD/UHD/4K Video Resolutions and Performance

W x H	Frame Rate	Color Sampling	Max. Cable Length		Max. Bit Depth
W x H	Frame Rate	Color Sampling	Cat 5e/6	Cat 6a/7	Max. Bit Depth
1920 x 1080	< 30 fps	4:2:2	100 meters	100 meters	16-bit
	> 30 fps	4:2:2	100 meters	100 meters	12-bit
	> 30 fps	4:2:2	70 meters	100 meters	16-bit
2048 x 1080	< 30 fps	4:2:2	100 meters	100 meters	16-bit
	> 30 fps	4:2:2	100 meters	100 meters	12-bit
	> 30 fps	4:2:2	70 meters	100 meters	16-bit
3840 x 2160	< 30 fps	4:4:4	70 meters	100 meters	8-bit
3840 x 2160	> 30 fps	4:2:0	70 meters	100 meters	8-bit
4096 x 2160	< 30 fps	4:4:4	70 meters	100 meters	8-bit
4096 x 2160	> 30 fps	4:2:0	70 meters	100 meters	8-bit

VESA Dispaly
VESA Display Resolutions and Performance

W x H	Frame Rate	Color Sampling	Max. Cable Length		Bits Per Pixel
W x H	Frame Rate	Color Sampling	Cat 5e/6	Cat 6a/7	Bits Per Pixel
640 x 480	to 85 fps	4:4:4	100 meters	100 meters	24-bits
800 x 600	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1024 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1152 x 768	-	4:4:4	100 meters	100 meters	24-bits
1280 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1280 x 800	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1280 x 1024	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1360 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1366 x 768	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1400 x 1050	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1440 x 900	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1600 x 1200	to 75 fps	4:4:4	100 meters	100 meters	24-bits
1600 x 1200	85 to 120 fps	4:2:0	70 meters	100 meters	24-bits
1680 x 1050	to 85 fps	4:4:4	100 meters	100 meters	24-bits
1680 x 1050	120 fps	4:4:4	70 meters	100 meters	24-bits
1920 x 1200	to 120 fps	4:4:4	100 meters	100 meters	24-bits
1920 x 1440	to 60 fps	4:4:4	70 meters	100 meters	24-bits
2560 x 1600	60_RB	4:4:4	70 meters	100 meters	24-bits

Specfications:

Input Video Format	HB-T-SDI 2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive over HDBaseT Link) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive over HDBaseT Link) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 720p 50, 59.94, 60 525i, 625i
Output Video Format	HB-R-SDI 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF 23.98, 24, 25, 29.97, 30 (optional to convert from progressive HDBaseT input) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 720p 50, 59.94, 60 525i, 625i (525p, 625p, 480p, 576p inputs from HDBaseT are converted to 525i, 625i) (Maximum cable length is 100 meters of CAT 5e/6/6a/7 for all SDI listed formats above)
Video Inputs	HB-T-HDMI: 1x HDMI HB-R-HDMI: 1x RJ45, 4K/UHD over HDBaseT HB-T-SDI: 1x 3G-SDI HB-R-SDI: 1x RJ45, HD over HDBaseT
Video Output	HB-T-HDMI: 1x RJ45, 4K/UHD over HDBaseT HB-R-HDMI: 1x HDMI HB-T-SDI: 1x RJ45, HD over HDBaseT HB-R-SDI: 1x 3G-SDI
HDCP	HDCP Compliant HB-R-SDI will not output HDCP encrypted content on SDI BNC
Audio Input	HB-T-HDMI: Eight channels (4 pairs) of embedded audio supported Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz HB-R-HDMI: HDBaseT embedded Audio HB-T-SDI: Eight channels (4 pairs) supported from SDI embedded audio, select from 16 channels (8 pairs) HB-R-SDI: HDBaseT embedded Audio
Audio Output	HB-T-HDMI: HDBaseT embedded Audio HB-R-HDMI: Eight channels (4 pairs) of embedded audio supported Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz HB-T-SDI: HDBaseT embedded Audio HB-R-HDMI: Eight channels (4 pairs) of embedded audio supported on SDI output
Control Data Ports	RS-232 Extension 1x 1/8 inch TRS connector, Extends 2-way serial device control signals up to 115.2k baud RS-232 Cable Option The RS-232 pinout diagram provided below pertains to the AJA cable bundle provided as an optional purchase. DB9 Pinout This chart depicts the complete RS-232 pinout specification. As noted, only three connections are commonly used today and are supported in the AJA cable option. IR Extension Input & Output Ports 1x 1/8 inch TRS connector, transmit port 1x 1/8 inch TRS connector, receive port IR/RS-232 Cable Kit Option Order HB-CABLE-KIT option including: 2x IR 1/8 inch TRS Cable – 1.5 meters 2x RS-232 Cable – .35 meters (for both male and female DB9 connections)
Power	+5 to 20V DC regulated HB-T-HDMI & HB-R-HDMI: 6 watts max. HB-T-SDI & HB-R-SDI: 9 watts max. AJA external power supply model DWP-U-R1 (included with purchase) 100-240V, 50/60Hz universal input
Size	HB-T-HDMI & HB-R-HDMI: 4.6" x 2.4" x 1" (109mm x 78mm x 25mm.) HB-T-SDI & HB-R-SDI: 5.8" x 4.0" x 0.9" (147mm x 102mm x 23mm.)
Environment	Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) Operating Relative Humidity: 10-90% non-condensing Operating Altitude: <3,000 meters (<10,000 feet) Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)

mf-14/10/2015
