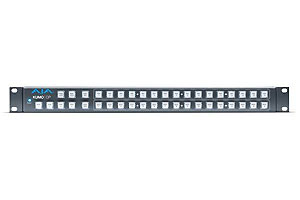

AJA KUMO CP Control Panel for KUMO 1616 and 3232
Routers
AJA KUMO-CP is a 1RU control panel that can be used
in standalone or networked configurations suitable for all KUMO routers
except the KUMO 6464. For KUMO 6464 please refer to the KUMO CP2. Connecting
via Ethernet to the same network as KUMO routers, KUMO CP enables full
control from any location without the need for a computer. Up to four KUMO
routers can be controlled from a single control panel. Supports ganged dual
and quad port routing control, allowing users to group together multiple
inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2
workflows.
Buttoned Up
The destination-oriented KUMO CP Control Panel
offers plug-and-play control of AJA’s 1616 and 3232 compact routers.
KUMO CP features 40 buttons and enables selection of up to 32 inputs and 32
outputs on each of up to four KUMO routers in standalone mode or through a
built-in GUI accessible from any web browser on the network.
This
affordable control panel is only 1.3 inches deep, easy to install, and uses
a Shift key to access more inputs and outputs than traditional 1RU control
panels, and is backed by a five-year warranty.
Salvos for simple source to destination
mapping
Salvos allow an operator to quickly route a
predefined set of crosspoints, connecting specific sources to destinations,
at the push of a button. Salvos are easily created by simply setting up the
desired routes and saving it to a button in the KUMO router’s Web UI.
Up to eight salvos can be stored in a KUMO router and can be instantly
recalled via the KUMO router’s Web UI, GVG Native Protocol over Ethernet,
RS-422, and/or the AJA KUMO CP Salvo buttons.
Remote Router Control
While KUMO routers can be controlled via the
built-in web UI, connecting a KUMO CP to the network provides a familiar,
computer-free solution for router control for KUMO 1616 and KUMO 3232.
KUMO CP is easily recognized and understood by video engineers, tape
operators and editors and provides a fast, tactile interface that can stand
up to the rigors of daily use.
Redundant Power Supplies
Routing sits at the heart of your signal matrix
needs, connecting one critical device to another. To ensure maximum uptime
in the unlikely event of a power supply failure, KUMO offers redundant power
supply options that can failover with zero disruption to operations.
Multi-Router Configuration
Utilizing its Ethernet network connection, KUMO CP
can communicate with up to four KUMO routers anywhere on the network. This
allows you to locate control panels exactly where they are needed for
maximum accessibility.
Custom Button Labels
Customize KUMO CP and KUMO CP2 buttons exactly to
your needs. Use text labels and colored inserts to identify various sources,
destinations and routers for quick and easy operation. To get you started,
you can download a lens chip template which can be color-printed and cut to
create an insert for each button on the KUMO control panel.
