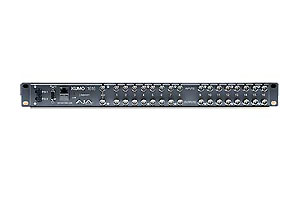

AJA KUMO 1616 Compact 16x16 3G-SDI Router

AJA KUMO 1616 Compact 16x16 3G-SDI Router

AJA KUMO-1616 offers the perfect size for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow with a compact 1RU profile and support for 3G-SDI/1.5G-SDI from 16x 3G-SDI inputs and 16x 3G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link and Quad Link 4K/UltraHD workflows.

KUMO 3G-SDI routers support single link 1080p/HD/SD, high frame rate (HFR) and deep color formats. The routers offer network-based and/or physical control using KUMO CP and CP2 and offer a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 1616 is the ideal choice for any situation where a balance of size, performance, and capacity are critical such as post facilities and mobile trucks.

Powerful Signal Management

AJA KUMO-1616 powerful crosspoint routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO 1616 as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 1616 can take the place of multiple distribution amplifiers.

As 4K workflows continue to gain ground, KUMO routers can grow as you do. With a simple setting change, KUMO routers can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual link, 4K/UltraHD workflows. This allows seamless routing of uncompressed or raw or 4K/UltraHD signals throughout a production or post facility. Then switch the router back to single link HD-SDI/SD-SDI operation as needed, giving you the flexibility to route virtually any format in your facility.

Compact Routing

KUMO compact SDI routers provide powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU and 2RU and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or postproduction environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.

KUMO SDI routers are available in six configurations: Two for 12G/6G/3G/1.5G-SDI and four for 3G/1.5G-SDI routing needs.

For 12G-SDI, look to KUMO 3232-12G for 32x 12G-SDI inputs and outputs or KUMO 1616-12G for 16x 12G-SDI inputs and outputs.

For 3G-SDI look to KUMO 6464 for 64x 3G-SDI inputs and outputs, KUMO 3232 for 32x 3G-SDI inputs and outputs, KUMO 1616 for 16x 3G-SDI inputs and outputs and KUMO 1604 for 16x 3G-SDI inputs and 4x 3G-SDI outputs.

Powerful Signal Control

KUMO's powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 1616-12G can take the place of multiple distribution amplifiers.

As 8K emerges and 4K/UltraHD workflows continue to gain ground, KUMO routers can meet the rising challenge. AJA KUMO 1616-12G routers offer single-link cable simplicity for 4K/UltraHD and with a simple setting change, KUMO 12G-SDI routers can be configured for ganged dual-link or quad-link grouping allowing users to group together multiple inputs and outputs for 8K workflows and similarly, KUMO 3G-SDI routers for dual or quad-link 4K/UltraHD workflows. This allows routing of raw or 8K or 4K/UltraHD signals throughout a production, live event, OB truck or post facility.

Salvo Simplicity

New salvos support simplifies switching operations by recalling multiple sources to specific destinations. Salvos are stored in a KUMO router and can be recalled via the KUMO router?s Web UI, GVG Native Protocol over Ethernet, RS-232, and/or the AJA KUMO CP2 Salvos buttons.

Eight Salvos can be configured and stored in each KUMO router. Salvos allow the operator to quickly recall predefined sources to specific destinations configurations with a simple button press.

Broadcast Standard Reliability

Designed for critical broadcast, production and post environments, KUMO routers are built to AJA standards that exceed SMPTE specifications. The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.
