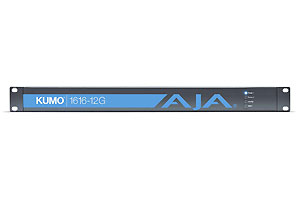

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

AJA KUMO 1616-12G

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

Product Code: KUMO 1616-12G

AJA Kumo 1616-12G
review button

Features
• 16x 12G-SDI inputs and outputs
• Small, portable form factor
• Single cable support for 4K/UltraHD
• Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
• Redundant power supply (option)


AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

AJA KUMO 1616-12G offers increased capacity for larger configurations while maintaining a compact 1RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI with 16x 12G-SDI inputs and 16x 12G-SDI outputs.

AJA KUMO 1616-12G routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable runs when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control, and mirror the physical form of AJA?s production-proven KUMO 3232 and KUMO 1616 routers, with a new USB port for configuring IP addresses via AJA?s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 1616-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

Compact Routing

KUMO compact SDI routers provide powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU and 2RU and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or postproduction environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.

KUMO SDI routers are available in six configurations: Two for 12G/6G/3G/1.5G-SDI and four for 3G/1.5G-SDI routing needs.

For 12G-SDI, look to KUMO 3232-12G for 32x 12G-SDI inputs and outputs or KUMO 1616-12G for 16x 12G-SDI inputs and outputs.

For 3G-SDI look to KUMO 6464 for 64x 3G-SDI inputs and outputs, KUMO 3232 for 32x 3G-SDI inputs and outputs, KUMO 1616 for 16x 3G-SDI inputs and outputs and KUMO 1604 for 16x 3G-SDI inputs and 4x 3G-SDI outputs.

Powerful Signal Control

KUMO's powerful cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. Use KUMO as an affordable distribution amplifier by routing a single input to all outputs. Used in this way, a KUMO 1616-12G can take the place of multiple distribution amplifiers.

As 8K emerges and 4K/UltraHD workflows continue to gain ground, KUMO routers can meet the rising challenge. AJA KUMO 1616-12G routers offer single-link cable simplicity for 4K/UltraHD and with a simple setting change, KUMO 12G-SDI routers can be configured for ganged dual-link or quad-link grouping allowing users to group together multiple inputs and outputs for 8K workflows and similarly, KUMO 3G-SDI routers for dual or quad-link 4K/UltraHD workflows. This allows routing of raw or 8K or 4K/UltraHD signals throughout a production, live event, OB truck or post facility.

Salvo Simplicity

New salvos support simplifies switching operations by recalling multiple sources to specific destinations. Salvos are stored in a KUMO router and can be recalled via the KUMO router?s Web UI, GVG Native Protocol over Ethernet, RS-232, and/or the AJA KUMO CP2 Salvos buttons.

Eight Salvos can be configured and stored in each KUMO router. Salvos allow the operator to quickly recall predefined sources to specific destinations configurations with a simple button press.


Broadcast Standard Reliability

Designed for critical broadcast, production and post environments, KUMO routers are built to AJA standards that exceed SMPTE specifications. The use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.

Video Format 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
270 Mbps DVB-ASI
Format agnostic, 125 Mbps – 12 Gbps
Video Input Digital 12G-SDI Inputs
16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital 12G-SDI Outputs
Noninverting
16x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Ancillary Data Passes all SDI embedded ancillary data including audio
Salvo Up to 8 Salvos can be configured and saved in each KUMO router
Cable Equalization (Belden 1694A)
12 Gbps, up to 70m
6 Gbps, up to 120m
3 Gbps, up to 190m
1.5 Gbps, up to 195m
270 Mbps, up to 405m
Automatic operation
Reclocking 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
All other rates are passed through and not reclocked
Switching Modes Single, Dual, and Quad Link modes
Switches in vertical blanking per SMPTE RP-168
Control Panel Compatibility AJA KUMO CP ? 1RU X-Y Ethernet control panel
AJA KUMO CP2 ? 2RU X-Y Ethernet control panel
Reference Input External, 2x BNC
Looping, nonterminating
Blackburst or tri-level sync
Network Interface 1x RJ-45, 10/100/1000 Ethernet
Supports AJA KUMO Ethernet control panels, direct connect or networked
Grass Valley Native Protocol
Embedded web server for remote control
USB Interface 1x Mini-USB for IP configuration
Serial Interface 1x DB-9 Female, RS-422
Grass Valley Native Protocol
9-pin D-connector pinout
Size (w x d x h) 1RU – 17.4″ x 1.54″ x 1.75″ (441.96 x 39.12 x 44.45 mm)
Weight 1.4 lb (0.7 kg)
Power 10-14VDC regulated, 13W typ, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
