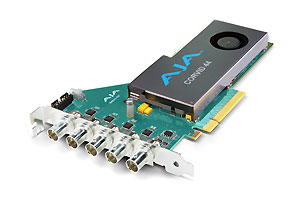

AJA Corvid 44 Flexible Multi-format I/O Card
AJA Corvid 44 allows
AJA Developer Partner applications to access up to four simultaneous SDI
input or output streams on a single PCIe card, making it perfect for a wide
variety of medium density applications.
Flexible
Multi-Format I/O
Each 3G-SDI BNC
connection on Corvid 44 BNC can be set programmatically as either an input
or output and each can support a different video format, provided all
formats use the same clock timing. Connections can also be linked together
to support dual link or 4K/UltraHD formats.
High Frame
Rate support
Corvid 44 BNC supports
4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows.
Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most
demanding 4K and UltraHD applications.
High frame rates are not
limited to 4K and UltraHD with Corvid 44 BNC, multiple 720p and 1080p HD
inputs and outputs are also supported at frame rates up to 50p and 60p,
making Corvid 44 BNC extremely flexible for your current and future needs.
64-Channel
Audio For Complete Flexibility
Corvid 88 allows the
ingest or output of up to 64 discrete audio channels across multiple SDI
connections.
LTC and
Reference Input
Corvid 44 BNC provides
one external, switchable LTC/Reference Input connection on the back of the
card. A second LTC input is available on an internal header for providing
additional reference to Corvid 44 BNC.
RS-422
A built-in RS-422
connection is available as an external connection on Corvid 44 BNC. RS-422
allows control of external devices for frame accurate ingest and layoffs.
| Video Formats |
- (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 47.95 A/B, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
- (HD) 1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
|
| Video Input Digital |
- 3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
- 1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
- 270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
|
| Video Output Digital |
- 3G-SDI, SMPTE 425
- RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
- 1.5G-SDI, SMPTE 292M
- Single Link HD-SDI YCbCr 4:2:2 10-bit
- Dual Link RGB 4:4:4 12-bit*, Dual Link YCbCr 4:2:2 10-bit
- 270 Mbps SDI, SMPTE 259M-C
- YCbCr 4:2:2 10-bit, 8-bit
|
| HDR |
SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance |
| Audio Input Digital |
16-channel 24-bit SDI embedded, 48 kHz synchronous |
| Audio Output Digital |
16-channel 24-bit SDI embedded, 48 kHz synchronous |
| Reference |
Analog Color Black or HD Tri-level sync |
| BNC |
|
| Electrical Interface |
8-lane PCIe 2.0 |
| Size (w x d x h) |
0.73″ × 6.6” × 2.72” (18.54 × 167.64 × 69.09 mm) |
| Weight |
0.4 lb (0.2 kg) |
| Power |
17W typical, 19W max |
| Environment |
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
- Airflow across the board for fanless models
- 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
|
|
