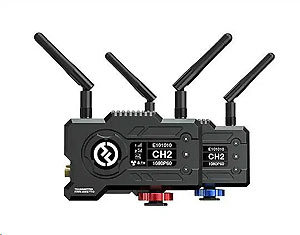

Hollyland MARS 400S PRO (400ft) SDI/HDMI Wireless Video Transmission System
SLEEK INDUSTRIAL DESIGN
Hollyland MARS 400S Pro Lower Gravity Center, and Much More Stable &
Convenient Installation with the Brand-New Transverse Design and the Integrated Cold Shoe
0.08S LOW LATENCY
400ft Reliable Wireless A&V Transmission with Only 0.08S Latency
BOTH SDI & HDMI
SDI & HDMI Inputs on TX and SDI & HDMI Outputs on RX
MULTIPLE FAN MODES
Off, Low Speed & Auto Fan Modes for Different Applications and Better Shooting Experiences
DIRECT VIDEO FOR LIVE STREAM
Video Feed Straight Out of RX for Live Streaming Without Further Encryption and Decryption via an Video Capture Device
OPTIMIZED MONITORING FEED
Hollyland MARS 400S Pro Data Rate Raised from 8M Bps to 12M Bps for High-Definition Monitoring Quality
MULTIPLE MONITORING OPTIONS
2 RX – 0 App 1 RX – 2
APP 0RX – 4 App
MULTIPLE POWER OPTIONS
5~12V Wide Voltage Power Supply with Type-C Charging Option Added to Various L-Series Batteries and 6~16V DC Power Options
PRO APP MONITORING
Hollyland MARS 400S Pro Supports up to 4 Phones & Tablets Real-Time Monitoring with Professional Monitor Features, such as Waveform, Focus Peaking, Zebra, Zoom In/Out, 3D
Luts, etc.
CHANNEL SCAN & FIRMWARE UPDATE ON APP
Optimal Channel A Click Away on RX and the HollyView APP, and Easy & Quick Firmware Update on the App
- Sleek Industrial Design
- 400FT Transmission Range
- 0.08s Lowest Achievable Latency
- Supports 1 TX to 2 RX
- Up to 4 Real-Time App
Monitoring (0 RX – 4 App, 1 RX – 2 App)
- Supports Both SDI & HDMI
- Optional Fan Modes: Off, Low Speed & Auto
- Direct Video Feed for Live
Stream
- Optimized Monitoring Feed, Data Rate Raised From 8m Bps To 2m Bps
- Multiple Power Options
- Channel Scan & Firmware Update On App
|
|
Transmitter
|
Receiver
|
|
Interface
|
HDMI Input(Type A Female) SDI Input
2* Antenna Interfaces (RP-SMA Male) DC Input USB Type-C
|
HDMI Output(Type A Female) SSDI Output
2* Antenna Interfaces (RP-SMA Male) DC Input USB Type-C
|
|
Supply Interface
|
DC Power Input:6-16V
USB Type-C Power Supply:5V/2A Battery Power Supply:6-16V DC
|
DC Power Input:6-16V
USB Type-C Power Supply:5V/2A Battery Power Supply:6-16V DC
|
|
Power Consumption
|
< 11W
|
< 7W
|
|
Weight
|
206g
|
206g
|
|
Size
|
(L*W*H): 110*72*33.5mm (The Battery Plate Exclude)
|
(L*W*H): 110*72*33.5mm (The Battery Plate Exclude)
|
|
Input / Output Video Format
|
HDMI:480p60 576p50 720p50/59.94/60 1080i50/59.94/60
1080p23.98/24/25/29.9/30 1080p50/59.94/60
SDI:1080p60/59.94/50(Level A) 1080p60/59.94/50(Level B)
1080i60/59.94/50 1080p30/29.97/25/24/23.98
1080P sF 25 720p60/59.94/50 1080P sF 24/23.98
|
HDMI:480p60 576p50 720p50/60
1080i50/60 1080p24/25/30 1080p50/60
SDI:1080p60/50(Level A) 1080p60/50 1080p30/25/24
720p60/50 1080i50(1080P sF 25/24/23.98input)
1080i60(1080P sF 30/29.97input)
|
|
Modulation Mode
|
OFDM
|
OFDM
|
|
Frequency
|
5GHz
|
5GHz
|
|
Transmission Power
|
Maximum 21dBm
|
/
|
|
Receiver Sensitivity
|
/
|
80dBm
|
|
Transmission Latency
|
0.08s
|
0.08s
|
|
Bandwidth
|
20MHz
|
20MHz
|
