Hollyland MARS 400 Dual HDMI Wireless Transmission System

Hollyland MARS 400 Dual HDMI Wireless HD Video Transmission System

Home > Hollyland > Mars 400

Hollyland MARS 400 Dual HDMI Wireless HD Video Transmission System

Product Code: MARS 400

Buy Sell Sales Hollyland Mars400 Transmission System

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 30 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme's conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme

Mars 400: Overview
Specifications
Interfaces

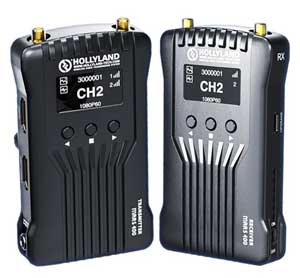

Hollyland MARS 400 (400ft) Dual HDMI Wireless HD Video Transmission System
Multiple Platform Monitoring
Hollyland MARS 400 Support varies connection methods with more functions on HollyView APP

OLED Display Screen
Check out signal strength, channel number and more information on the screen. Low-battery indicator function help to avoid broadcasting accidents.

Channel Scan Function
Hollyland MARS 400 Scan current environment to find out each channel status. Choosing the channel without interference to avoid signal interruption.

Dual HDMI Interface
Provide loop out and extra monitoring options.

1 Transmitter to 2 Receivers
Multiple sets of equipment can be used at the same time

Portable & Lightweight
Bring more flexibility to make your shooting effortless

400ft Transmission Range
Hollyland MARS 400 Support 400ft line of sight transmission range between the transmitter and the receiver

	Transmitter	Receiver
Interface	HDMI Input (Type A Female) HDMI Loop Out (Type A Female) 2 Antenna Interfaces (RP-SMA Male) DC Input, Type-C USB	HDMI Output 1 (Type A Female) HDMI Output 2 (Type A Female) 2 Antenna Interfaces (RP-SMA Male) DC Input, Type-C USB
Power Consumption	<10W	<6W
Input Video Format	HDMI : 480p60, 576p50, 720p50/60, 1080i50/60, 1080p30/50/60	/
Output Video Format	/	HDMI : 480p60, 576p50, 720p50/60, 1080i50/60, 1080p30/50/60
Transmission Power	Maximum 21dBm	/
Receiver Sensitivity	/	-80dBm
Frequency	5GHz
Modulation Mode	OFDM
Transmission Latency	Less than 0.1s
Bandwidth	20MHz
Supply Interface	6~16V DC
Weight	165g
Size	1106228mm (LWH) External antennas and battery plate excluded

Transmitter:
- Antenna Interface
- HDMI Input
- HDMI Loop Out
- DC Input
- OLED Display Screen
- Down
- Menu/OK
- UP
- USB Upgrade Interface
- Fan Air Outlet
- Power Switch
- 1/4 Screw Hole

Receiver:
- Antenna Interface
- HDMI Output
- DC Input
- OLED Disply Screen
- Down
- Menu/OK
- UP
- USB Upgrade Interface
- Fan Air Outlet
- Power Switch
- 1/4 Screw Hole
