Cosmo 600: Overview

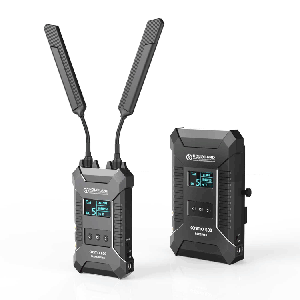

Hollyland Cosmo 600 (600FT) Wireless HDMI/SDI Transmission System
Features
• Working Distance 600ft
• Enhanced wireless performance and fast and stable connection.
• Easy to use, with LCD screen display, intuitive monitor equipment frequency, signal strength, video format, temperature and other information.
• In-built PCB antenna.
Highlights
• In fixed frequency operation mode, the automatic scan
• free channel is supported MINI USB port with GUI, can provide firmware upgrade.
• LCD screen can display current frequency point, signal strength, video format, fan status, and equipment temperature.
In the Box
• 5 GHz Antennas x2
• 7" Articulating Arm x1
• Crab Clamp x1
• D-tap to Lemo Cables x2
• Hard Case x1
• Receiver x1
• Transmitter x1
• User Manual x1
Specifications |
| |
Transmitter |
Receiver |
| Interface |
3G SDI Input，3G SDI loop out BNC，HDMI Input(Type A Female); 2 Antenna port(RP-SMA Male); DC Input Lemo 4 pin; Mini USB Port; Analog Audio Input Interface |
HDMI Output(Type A Female);3G SDI Output 2 BNC; 5 Antenna port(RP-SMA Male); DC Input LEMO 4 pin; Mini USB Interface |
| Supply Voltage Range |
7~36V DC |
7~36V DC |
| Power Consumption |
/ |
/ |
| size |
(L x W x H):126*70*25mm |
(L x W x H):156*94*25mm |
| Input Video Format |
HDMI:1080p (60/59/50/30/25/24Hz); 1080i (60/59/50Hz); 720p (60/59/50Hz); 576p (50Hz); 480p (60/59Hz);
Panel:1920x1080, 1768x992, 1366x768, 1280x768, 1280x720, 1280x600, 1176x664, 1024x768, 800x600, 720x576, 720x480
SDI Max 1080p 60 |
/ |
| Output Video Format |
/ |
HDMI:1080p (60/59/50/30/25/24Hz); 1080i (60/59/50Hz); 720p (60/59/50Hz); 576p (50Hz); 480p (60/59Hz);
Panel:1920x1080, 1768x992, 1366x768, 1280x768, 1280x720, 1280x600, 1176x664, 1024x768, 800x600, 720x576, 720x480
SDI Max 1080p 60 |
| Input Audio Format |
I2S; PCM; SPDIF; AC-3; DTS; Dolby 5.1/7 |
/ |
| Output Audio |
/ |
I2S; PCM; SPDIF; AC-3; DTS; Dolby 5.1/7 |
| Signal Indicator |
Link-Green；Video-Yellow |
Link-Green; Video-Yellow Wireless RSSI-Blue (5 LEDs) |
| Frequency Band |
5.1-5.9GHz, configurable with China, North American, Europe, etc |
5.1-5.9GHz, configurable with China, North American, Europe, etc |
| Modulation Mode |
OFDM~16QAM |
OFDM~16QAM |
| Transmission Power |
Maximum 21dBm |
Maximum 21dBm |
| Receiver sensitivity |
/ |
-75dBm |
| Occupied bandwidth |
20/40MHz |
20/40MHz |
| Weight |
/ |
/ |
|
