AJA OG-FS-Mini 3G-SDI
Frame Synchronizer

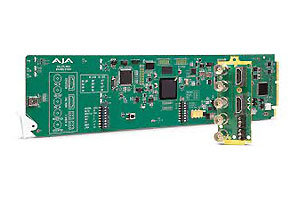

AJA OG-FS-Mini is an
openGear broadcast quality utility frame sync that
packs the production-proven reliability of AJA’s
leading FS frame sync technology into an openGear
card, supporting frame synchronization of untimed
3G-SDI, HD, and SD video signals at an affordable
price.
OG-FS-Mini allows users to
synchronize and convert a wide range of video
formats to their house standard with a 3G-SDI input
and output, HDMI output, and two 3-pin terminal
block connectors for balanced analog audio outputs.
The OG-FS-Mini also provides high quality up, down,
cross-conversion.
OG-FS-Mini is designed for
use in high-density openGear’s 2RU frames including
AJA’s OG-X-FR frame. DashBoard software support on
Windows®, macOS® and Linux offers remote control and
monitoring of the openGear architecture and provides
convenient and industry-standard configuration,
monitoring and control options over a PC or local
network.
Features:
• openGear compatible
card
• Utility frame sync function times input
signals to an external reference
• Supports
bi-level and tri-level references
• High quality
10-bit video processing
• Low latency processing,
nominal video delay of 1 frame
• Loss of Input
management: Freeze, Black, or Mute
•
Synchronizes 3G, HD and SD video formats
•
Simultaneous SDI and HDMI outputs
• 16-channel
embedded SDI audio I/O
• 8-channel HDMI output
audio
• 2x 3-pin terminal block connectors for
analog audio output
• Utility frame rate
conversion, supports 3:2 pulldown
• Up, down,
cross conversion between 3G, HD and SD video formats
• AFD input detection, down-convert control
•
Remote configuration through Ross DashBoard software
• Rear I/O card included
• Compatible with
OG-X-FR, OG-3FR and DFR-8321 openGear frames
NOTE:
OG-FS-Mini supports 3G-SDI
Level A only. 3G-SDI Level B is not supported.
OG-FS-Mini passes-through embedded audio ancillary
data only; It does not pass through other types of
embedded ancillary data.
| Video Formats |
- (HD) 1920 1080p
- (HD) 1920x1080PsF
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 625i
- (SD) 525i
- YCbCr, 4:2:2, 10-bit
|
| Video Input Digital |
- 1x 3G-SDI, 1x BNC
- 3G/HD/SD, SMPTE-259/292/372/424
- Single Link 3G-SDI Level A, SMPTE-425-1
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
|
| Video Output Digital |
- 1x 3G-SDI outputs, 1x BNC
- 3G/HD/SD, SMPTE-259/292/424
- Single Link 3G-SDI Level A, SMPTE-425-1
- (HD) 1080p 23.98 (for 23.98 video inputs)
- (HD) 1080p 24 (for 24 video inputs)
- (HD) 1080p 25 (for 50 video inputs)
- (HD) 1080p 29.97 (for 59.94 video inputs)
- (HD) 1080p 30 (for 60 video inputs)
- (HD) 1080p 50 (for 50 video inputs)
- (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 1080p 60 (for 24, 30 or 60 video inputs)
- (HD) 1080PsF 23.98 (for 23.98 video inputs)
- (HD) 1080PsF 24 (for 24 video inputs)
- (HD) 1080PsF 25 (for 50 video inputs)
- (HD) 1080PsF 29.97 (for 59.94 video inputs)
- (HD) 1080Psf 30 (for 30 or 60 video inputs)
- (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
- (HD) 1080i 60 (for 24, 30, or 60 video inputs)
- (HD) 1080i 50 (for 25 or 50 video inputs)
- (HD) 720p 50 (for 50 video inputs)
- (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 720p 60 (for 24, 30, or 60 video inputs)
- (SD) 625i 50 (for 25 or 50 fps video inputs)
- (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
|
| Monitor Output Digital |
- 1x HDMI standard type A connector
- HD/SD
- Color space, YCbCr or RGB
- Bit depth, 8 or 10
- RGB Range, SMPTE or Full Range
|
| Video Processing |
- Frame rate conversion/film cadence removal/insertion (3:2)
- Freeze (on input signal loss) to black or last good frame
- AFD input detection, down-convert control
- Nominal video delay HD/SD, 1 frame
|
| Up-Conversion |
- Hardware 10-bit
- 4×3 Pillar: results in a 4×3 image at center screen with black sidebars
- 14×9 Pillar: results in a 4×3 image zoomed slightly to fill a 14×9 image with black sidebars
- Full Screen: results in a 4×3 image stretched horizontally to fill in a 16×9 screen
- Letterbox to Full: results in image zoomed to fill fullscreen
- Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16×9 screen; this setting will introduce a small aspect ratio change
|
| Down-Conversion |
- Hardware 10-bit
- Crop: image is cropped to fit the new screen size
- Anamorphic: HD image is converted to full-screen SD with a 16×9 aspect ratio
- 14×9: image is reduced slightly with the aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped
- Auto AFD: automatically selects the best down-convert mode based on the input video’s Active Format Description (AFD) code
- Letterbox: image is reduced with a black top and bottom added to the image area with the aspect ratio preserved
|
| Cross-Conversion |
- Hardware 10-bit
- 1080i to 720p
- 720p to 1080i
- 720p to 1080PsF
|
Aspect Ratio Conversion for
SD to SD |
- Letterbox: transforms SD anamorphic material to a letterboxed image
- H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
- SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an amorphized image in the center
- V Crop: transforms SD letterbox material to an anamorphic image
- 14×9: anamorphic to 14×9 conversion
|
| Audio Input Digital |
- 48 kHz sample rate
- 1x SDI embedded input
- 16-channels, 24-bit (20-bit SD), SMPTE-272/299
|
| Audio Output Digital |
- 48 kHz sample rate
- 1x SDI embedded output
- 16-channels, 24-bit (20-bit SD), SMPTE-272/299
|
| Audio I/O |
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- Balanced analog audio outputs, 2x 3-Pin terminal block connectors
|
| Ancillary Data |
- Supports pass-through of PCM-embedded audio
- Supports pass-through of non-PCM audio when the source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during a frame sync operation.
- All other ANC data is not passed
|
| Reference Input |
Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75-ohm terminating
|
| Genlock |
- Lock to External Reference
- Lock to SDI input
- Free run
|
| HDCP |
The OG-FS-Mini does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the OG-FS-Mini are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs. |
| User Interface |
- External DIP switch
- openGear DashBoard network control software via Windows, macOS or Linux
|
| Size |
openGear standard form factor, front slot and rear card. Two slots required for each card |
| Weight |
0.5 lb (0.3 kg) |
| Power |
openGear frame compatible, 7.0 watts max per card |
| Environment |
- Safe Operating Temperature Range: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% non-condensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
|
