    Integrate HDMI and SDI easily

  • AJA Hi5-Plus AJA Hi5-Plus

 AJA Hi5-Plus Integrate HDMI and SDI easily
Home > Main Convert > Hi5-Plus
  • AJA Hi5-Plus

    Product Code:Hi5PLUS
    Buy Sell Sales AJA Hi5-Plus


  • Features

    - Supports HDMI v1.4
    - Easily integrate HDMI devices into SDI workflows
    - 3G capability for high data rate signals
    - Compact size fits easily in small spaces
    - 16-channel embedded SDI and 8-channel HDMI audio
    - 2-channel RCA analog audio output
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty

AJA Hi5-Plus: Overview
Bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.

3G-SDI to HDMI Mini-Converter

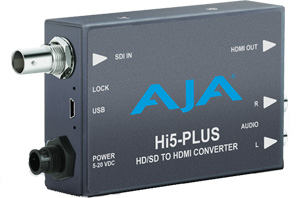

Hi5-Plus is AJA's next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows

Deep Color HDMI
When used with a compatible HDMI monitor, Hi5-Plus outputs a 30-bit Deep Color RGB signal that allows for incredible color representation.

3G-SDI Support
The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows where image quality is critical.

Audio Integration
Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

PsF to Progressive conversion
HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF formats. Hi5-Plus converts incoming 1080PsF signals to 1080p. This progressive signal is compatible with HDMI monitors.



Specfications:
Video Input 3G-SDI with embedded audio
Input Formats 525i, 625i
720p 50, 59.94, 60
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30
(converts to progressive)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K x 1080PsF 23.98, 24, 25, 29.97, 30
(converts to progressive)
Video Outputs HDMI with embedded audio up to 8 channels
(selectable by MiniConfig)
8-bit RGB 4:4:4
10-bit YCbCr 4:2:2
12-bit
Audio Input SDI embedded audio, select from 16 channels
Audio Output 2-channel RCA-style (-10dBV nominal)
Power Uses AJA Power Supply model DWP-U-R1 (included with purchase)
100-240V, 50/60Hz Universal Input
+5V DC regulated, 7.5 watt capacity
Size 4.6" × 2.4" × 1"(117mm × 61mm × 25mm)
