• AJA FiDO-T-ST Fiber Transmitter
  • AJA FiDO-T-ST

    3G-SDI to Single-Mode ST Fiber Transmitter

  • Email us Contact us

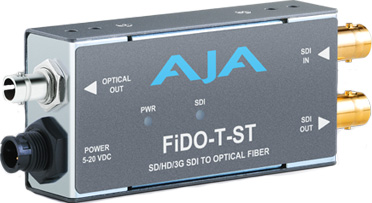

 AJA FiDO-T-ST 1-Channel 3G-SDI to Single-Mode ST Fiber Transmitter

Home > Main > Convert > FiDO-T-ST
  • AJA FiDO-T-ST Fiber Transmitter
    Product Code: FiDOTST
    Buy Sell Sales AJA FiDO-T-ST Fiber Transmitter
    review button

  • Features
    - Simplex connection (ST connector)
    - SDI, HD-SDI or 3G INPUT
    - Looping SDI output
AJA FiDO-T-ST: Overview
FiDO Mini-Converters offer unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10km with electrical isolation - useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Specifications:
Formats 3Gb, 1.5Gb, 270Mb, Auto Select
Video Inputs and Outputs SDI (SMPTE 259/292/424), BNC
1x Single mode optical fiber, LC connector (FiDO-R, FiDO-T)
1x Single mode optical fiber, ST connector (FiDO-T-ST, FiDO-R-ST)
1x Single mode optical fiber, SC connector (FiDO-T-SC, FiDO-R-SC)
2x Single mode optical fiber, LC connectors (FiDO-2R, FiDO-2T, FiDO-TR)
4x Single mode optical fiber, ST connectors (FiDO-4R-ST, FiDO-4T-ST)
Cable Equalization
(BNC Inputs, 1694 coax)
270mb, 400m
1.5Gb, 200m
3Gb, 140m
Input/Output Return Loss (BNC) >15db, 270Mb - 3Gb
Optical Outputs Wavelength: 13 10 nm
Output Power: -2dBm typical
Size 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) - FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC, FiDO-2R, FiDO-2T, FiDO-TR
4.6" x 4.10" x 0.92" (117 x 105 x 24mm) - FiDO-4T-ST, FiDO-4R-ST
Power +5-20 VDC
1.5 watts (FiDO-T, FiDO-R, FiDO-T-ST, FiDO-R-ST, FiDO-T-SC, FiDO-R-SC)
2.5 watts (FiDO-2R, FiDO-2T, FiDO-TR)
4.0 watts (FiDO-4R-ST, FiDO-4T-ST)
Requires Power Supply (AJA power supply model DWP-U-R1 included)
