  • AJA D5DA Serial Distribution Amplifier

    Product Code: D5DA
    Buy Sell Sales AJA D5DA


  • Features

    - Compact 1x4 Re-Clocking SD-SDI Distribution Amplifier
    - Low Cost
    - Automatic multi-standard
    - Useful as a Repeater

Overview

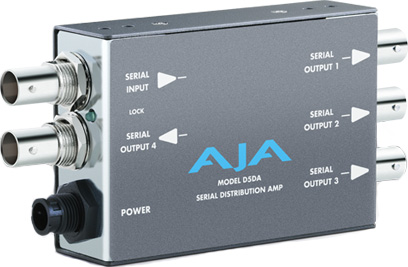

The D5DA is a multi-format, 1x4 reclocking SD-SDI Distribution Amplifier. The D5DA can be used as a low cost SD-SDI DA or repeater. The SD-SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the D5DA to automatically adapt to 143, 177, 270, or 360Mb SD-SDI inputs.



Specfications
Formats 143, 177, 270, 360 Mb, Auto Select
Inputs 1 SDI (SMPTE 259M), 1 x BNC
Outputs 4 SDI (SMPTE 259M), Equalizing and reclocking, 4 x BNC
Return Loss >15dB - 270Mhz (Input and Output)
User Controls External Dipswitch
Pedestal In NTSC Mode
Narrow/Wide Blanking
2 or 3 Line Comb
Power 5VDC Regulated, 2 Watts, Power Supply Required (included with purchase)
Size 5.1" x 2.4" x 1" (131 x 61 x 25mm)
