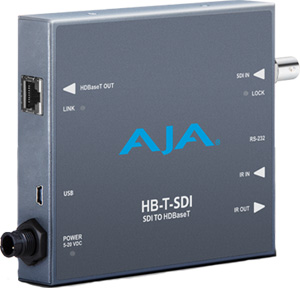

AJA HB-T-SDI SDI to HDBaseT
Home > Main Convert > HB-T-SDI
  • AJA HB-T-SDI

    Product Code:HBTSDI
    AJA HB-T-SDI


  • Features

    - HDBaseT Certified Signal Extender
    - Converts 3G-SDI to HDBaseT
    - Extend uncompressed SDI signals up to 100m over CAT5 (or better) cable
    - Configure via USB port and supplied Mini-Config software
    - IR IN and OUT
    - RS-232 device control connection

AJA HB-T-SDI: Overview
The HB-T-SDI and HB-R-SDI offer an easy solution for extending SDI signals up to 100 meters over CAT5 (or better) cable, utilizing the industry standard HDBaseT protocol. Bi-directional IR and RS- 232 for device control is also supported, making these Mini-Converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, post production/network/studio environments and on set.

Video Display

HD/UHD/4K Video Resolutions and Performance

W x H Frame Rate Color
Sampling
Max. Cable Length Max. Bit
Depth
Cat 5e/6 Cat 6a/7
1920 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
2048 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
3840 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit
4096 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit



VESA Dispaly

VESA Display Resolutions and Performance
W x H Frame Rate Color
Sampling
Max. Cable Length Bits Per
Pixel
Cat 5e/6 Cat 6a/7
640 x 480 to 85 fps 4:4:4 100 meters 100 meters 24-bits
800 x 600 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1024 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1152 x 768 - 4:4:4 100 meters 100 meters 24-bits
1280 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 800 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 1024 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1360 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1366 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1400 x 1050 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1440 x 900 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1600 x 1200 to 75 fps 4:4:4 100 meters 100 meters 24-bits
85 to 120 fps 4:2:0 70 meters 100 meters 24-bits
1680 x 1050 to 85 fps 4:4:4 100 meters 100 meters 24-bits
120 fps 4:4:4 70 meters 100 meters 24-bits
1920 x 1200 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1920 x 1440 to 60 fps 4:4:4 70 meters 100 meters 24-bits
2560 x 1600 60_RB 4:4:4 70 meters 100 meters 24-bits



Specfications:
Input Video Format HB-T-SDI
2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive over HDBaseT Link)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive over HDBaseT Link)
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
720p 50, 59.94, 60
525i, 625i
Output Video Format HB-R-SDI
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (optional to convert from progressive HDBaseT input)
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
720p 50, 59.94, 60
525i, 625i (525p, 625p, 480p, 576p inputs from HDBaseT are converted to 525i, 625i)
(Maximum cable length is 100 meters of CAT 5e/6/6a/7 for all SDI listed formats above)
Video Inputs HB-T-HDMI: 1x HDMI
HB-R-HDMI: 1x RJ45, 4K/UHD over HDBaseT
HB-T-SDI: 1x 3G-SDI
HB-R-SDI: 1x RJ45, HD over HDBaseT
Video Output HB-T-HDMI: 1x RJ45, 4K/UHD over HDBaseT
HB-R-HDMI: 1x HDMI
HB-T-SDI: 1x RJ45, HD over HDBaseT
HB-R-SDI: 1x 3G-SDI
HDCP HDCP Compliant
HB-R-SDI will not output HDCP encrypted content on SDI BNC
Audio Input HB-T-HDMI:
Eight channels (4 pairs) of embedded audio supported
Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
HB-R-HDMI:
HDBaseT embedded Audio
HB-T-SDI:
Eight channels (4 pairs) supported from SDI embedded audio, select from 16 channels (8 pairs)
HB-R-SDI:
HDBaseT embedded Audio
Audio Output HB-T-HDMI:
HDBaseT embedded Audio
HB-R-HDMI:
Eight channels (4 pairs) of embedded audio supported
Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
HB-T-SDI:
HDBaseT embedded Audio
HB-R-HDMI:
Eight channels (4 pairs) of embedded audio supported on SDI output
Control Data Ports RS-232 Extension
1x 1/8 inch TRS connector, Extends 2-way serial device control signals up to 115.2k baud
RS-232 Cable Option
The RS-232 pinout diagram provided below pertains to the AJA cable bundle provided as an optional purchase.
DB9 Pinout
This chart depicts the complete RS-232 pinout specification. As noted, only three connections are commonly used today and are supported in the AJA cable option.
IR Extension Input & Output Ports
1x 1/8 inch TRS connector, transmit port
1x 1/8 inch TRS connector, receive port
IR/RS-232 Cable Kit Option
Order HB-CABLE-KIT option including:
2x IR 1/8 inch TRS Cable – 1.5 meters
2x RS-232 Cable – .35 meters (for both male and female DB9 connections)
Power +5 to 20V DC regulated
HB-T-HDMI & HB-R-HDMI: 6 watts max.
HB-T-SDI & HB-R-SDI: 9 watts max.
AJA external power supply model DWP-U-R1 (included with purchase)
100-240V, 50/60Hz universal input
Size HB-T-HDMI & HB-R-HDMI: 4.6" x 2.4" x 1" (109mm x 78mm x 25mm.)
HB-T-SDI & HB-R-SDI: 5.8" x 4.0" x 0.9" (147mm x 102mm x 23mm.)
Environment Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: <3,000 meters (<10,000 feet)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
