    HD/SD-SDI to Analog Mini-Converter

  • AJA V2Analog AJA V2Analog

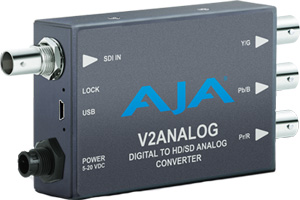

 AJA V2Analog HD/SD-SDI to Analog Mini-Converter
Home > Main Convert > V2Analog
  • AJA V2Analog

    Product Code:V2ANALOG
    Buy Sell Sales AJA V2Analog


  • Features

    - 10-bit AJA Digital to Analog conversion
    - Low power, compact size
    - HD/SD-SDI input
    - YPbPr/RGB Component or Composite output
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty

AJA V2Analog: Overview
V2Analog is a high-quality, cost-effective digital to analog video converter that's an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

Breakthrough price performance
V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions using AJA's industry-leading conversion technology to ensure the highest quality images for the most demanding situations.

Extensive format support
V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow.

Pristine image quality
Utilizing a full 10-bit data path and AJA's high-quality digital-to-analog technology, V2Analog maintains the most detail possible to ensure a quality conversion at an extraordinary price.

Specfications:
Formats 525i/625i, 1080i 50/59.94/60 Hz
1080p 23.98/24/25/29.97/30 Hz
1080PsF 23.98/24/25 Hz
720p 50/59.94/60 Hz
Inputs HD/SD-SDI, SMPTE-259/292/296M, 1 x BNC
Outputs HD component YPbPr, RGB (SMPTE-274), BNC
SD component (Betacam,EBU-N10)/composite/YC (S-Video), BNC
User Controls External Dipswitch
Control (Local/Remote)
Component/Composite (SD Only)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD Only)
Power +5-20 VDC, 3 watts
Size 5.1" × 2.4" × 1" (130 × 61 × 25 mm)
