• AJA OG-1x9-SDI-DA Re-clocking DA
  • AJA OG-1x9-SDI-DA

    openGear 1x9 3G-SDI Re-clocking DA

  • Email us Contact us

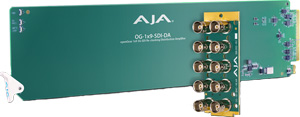

 AJA OG-1x9-SDI-DA openGear 1x9 3G-SDI Re-clocking DA

Home > Main > Convert > OG-1x9-SDI-DA
  • AJA 3G-SDI Re-clocking DA
    Product Code: OG1x9-SDIDA
    Buy Sell Sales AJA OG-1X9-SDI-DA
    review button

  • Features
    - Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
    - Excellent input jitter tolerance and low jitter re-clocked outputs
    - Excellent input/output return loss
    - "Input Present" and "Input SMPTE Lock" LEDs
    - Hot-swap capable
    - Compatible with DFR-8321 and OG3 openGear frames
Overview
The OG-1x9-SDI-DA is a state-of-the-art, openGear-compatible, 3G-SDI distribution amplifier. The incoming SD, HD or 3G signal is re-clocked and distributed to each of the 9 3G-SDI outputs, allowing the same signal to be sent to multiple destinations simultaneously.

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Connectivity
The 3G-SDI input is equalized and re- clocked with best-in-class cable length capability and input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. One SDI input and 9 SDI outputs are provided. A 10-BNC rear openGear connector module is included.
