    Integrate HDMI and SDI easily

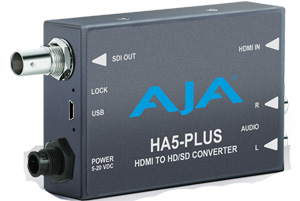

  • AJA HA5-Plus AJA HA5-Plus

 AJA HA5-Plus Integrate HDMI and SDI easily
Home > Main Convert > HA5-Plus
  • AJA HA5-Plus

    Product Code:HA5PLUS
    Buy Sell Sales AJA HA5-Plus


  • Features

    - HDMI to 3G/HD/SD-SDI
    - Full HDMI support including embedded audio
    - Equalized HDMI input supports long HDMI cables up to 30m, 24 gauge
    - PLL clock filtering for low jitter SDI outputs
    - Lock LED shows type of input source, SD (green) or HD (red)
    - HDMI v1.2 standard
    - 1m HDMI cable included
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty

AJA HA5-Plus: Overview
Bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.

HDMI to 3G-SDI Mini-Converter
HA5-Plus is AJA's next generation HDMI-to-SDI Mini-Converter. The HDMI input is converted to 3G-SDI output for driving SDI monitoring solutions. Up to eight channels of HDMI audio are passed through to the SDI output as well as the ability to embed two channels of analog audio.

Full HDMI Support
The equalized input on HA5-Plus is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

Pristine Image Quality
A 3G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.

Analog audio input
Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

DSLR support
HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.



Specfications:
Video Input HDMI with embedded audio, up to 8 channels
Input Formats 525i, 625i, 525p, 625p, 480p, 576p
720p 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60
Note: HDCP content not supported
Video Output 3G-SDI with embedded audio
Output Formats 525i 29.97
625i 25
720p 50, 59.94, 60
1080i 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30
1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920X1080 4:2:2 10-bit YCbCr)
Audio Input 2-channel RCA-style analog audio (-10dBV nominal)
Audio Output SDI embedded audio
Power Uses AJA Power Supply model DWP-U-R1 (included with purchase)
100-240V, 50/60Hz Universal Input
+5V DC regulated, 7.5 watt capacity
Size 4.6" × 2.4" × 1"(117mm × 61mm × 25mm)
