AJA HA5-4K Mini-Converter provides HDMI to 4K SDI
Home > Main Convert > HA5-4K
  • AJA HA5-4K

    Product Code:HA5-4K
    Buy Sell Sales AJA HA5-4K


  • Features

    - Supports HDMI v2.0 up to 1080p60
    - 4K/UHD conversion to quad or dual 3G SDI Out
    - 3G or HD conversion to single 3G SDI Out
    - Supports quadrant (square division) and 2SI (two sample interleave) 4K mapping
    - 2 Channel Embedded Audio
    - Lock LED shows type of input source, SD (green), HD (red), or 4K/UHD (orange)
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty



AJA HA5-4K: Overview

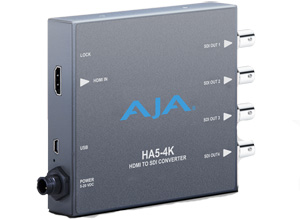

AJA's HA5-4K Mini-Converter provides high-quality conversion of HDMI to 4K SDI with 4 x 3G SDI outputs. HA5-4K allows conversion of HDMI video from DSLR's, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K SDI for use in professional workflows.


Connectivity
An increasing number of 4K products utilize an HDMI output connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer devices. HA5-4K is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.

Audio
Up to 8-channels of embedded audio in the incoming HDMI signal are carried through seamlessly into the SDI output, ensuring your audio is always in sync and carried flawlessly along with the SDI signal for use anywhere in your workflow.

4K and UltraHD
HA5-4K supports conversion of full resolution 4K (4096x2160) as well as UltraHD (3840x2160) from HDMI to 3G-SDI at frame rates up to 50/60 fps, providing a great solution for cinematic 4K productions as well as UHD projects.

HD Support
Not every job is a 4K job. When you're not working in 4K, HA5-4K can still be a useful tool for converting HD-HDMI to HD-SDI. HA5-4K will automatically sense an incoming HD resolution HDMI signal and convert this to a single 3G-SDI output, much like AJA's HA5-Plus Mini-Converter.


Specfications:
Video Input HDMI Standard Type A connector
HDMI v1.4b, RGB or YCbCr
HDMI v2.0, YCbCr, 4:2:0 only
3840x2160p 50, 59.94, 60
4096x2160p50, 59.94, 60
24 bits per pixel
HDCP not supported
Input Formats UHD/4K
4096x2160p 23.98, 24, 25, 29.97, 30
4096x2160p 50, 59.94, 60 (4:2:0 only)
3840x2160p 23.98, 24, 25, 29.97, 30
3840x2160p 50, 59.94, 60 (4:2:0 only)
HD
2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080i 25, 29.97, 30
1280x720p 50, 59.94, 60
SD
625i 25
576p 25
525i 29.97
480p 29.97
Video Output 3G-SDI (auto-selected), 4 x BNC
Output Formats 4 x 3G-SDI (Level A or B):
4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4 x HD-SDI:
4096x2160p 23.98, 24, 25, 29.97, 30
3840x2160p 23.98, 24, 25, 29.97, 30
3G-SDI (Level A):
1280x720p 50, 59.94, 60
3G-SDI (Level A or B):
2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080i 25, 29.97, 30
HD-SDI:
2048x1080p 23.98, 24, 25, 29.97, 30
1920x1080p 23.98, 24, 25, 29.97, 30
1920x1080i 25, 29.97, 30
1280x720p 50, 59.94, 60
SD-SDI:
625i 25
525i 29.97
Audio Input HDMI embedded audio, 24-bit, 2-channel
Audio Output SDI embedded audio, 24-bit, 2-channel
Power Uses AJA Power Supply model DWP-U-R1 (included with purchase)
100-240V, 50/60Hz Universal Input
+5 to 20V DC regulated, 10 watt capacity
Size 5.8" × 3.9" × 0.8"(147mm × 99mm × 20mm)
