• AJA HD10A-Plus Analog to SDI Converter
  • AJA HD10A-Plus

    HD Analog to HD-SDI Converter

  • Email us Contact us

 AJA HD10A-Plus High-quality, 10-bit Analog to Digital Converter for HD Workflows

Home > Main > Convert > HD10A-Plus

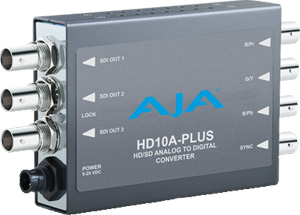

  • AJA HD10A-Plus Analog to SDI Converter
    Product Code:HD10APLUS
    Buy Sell Sales AJA HD10A-Plus Analog to SDI Converter
    review button

  • Features
    - Low Cost, High Quality, 10-bit HDTV A/D Conversion
    - Full Bandwidth Component HD RGB or YPbPr Input
    - 3 HD-SDI Outputs
    - Multi-Standard
    - SD mode support
    - Internal or External Sync
    - Easy-access DIP switch configuration
    - Low power, compact size
    - Uses 5-20VDC power (DWP-U-R1 universal power supply included)
    - 5-year warranty
AJA HD10A-Plus: Overview
The HD10A-Plus is a miniature, high-quality, 10-bit analog to digital converter for HD workflows. The HD10A-Plus can add an HD or SD SDI output to cameras, VTRs, or other analog-only equipment, even computers with HD RGB graphics. The HD10A-Plus accepts HD YPbPr or RGB analog and outputs three duplicate SDI signals. Works in 1080i, 1035i, 1080psf, and 720p with internal or external sync (tri-level). The HD10A-Plus also includes SD mode support for PAL and NTSC needs.

Breakthrough price performance
HD10A-Plus builds on AJA's successful HD10A Analog to Digital Mini-Converter with new components that allow the same level of performance and capability users have come to expect from AJA, but at a lower price point. End-to-end 10-bit processing ensures the highest quality conversion and output.

Extensive format support
HD10A-Plus accepts a wide variety of analog input signals from component analog HD cameras and VTRs to computer RGB signals. Breathe new life into older analog equipment by converting the analog outputs to digital for integration into modern workflows.

Easy configuration
HD10A-Plus can be completely configured using external DIP switches for fast and easy configuration in the field, within mobile and AV setups or behind a rack in your facility.

Highly portable
HD10A-Plus's low power consumption and compact size make it perfect for on set use, where it can run off battery power, as well as throughout a facility or AV installation for on-the-spot conversion.

Specfications:
Formats 525i/625i, 1080i 50/59.94/60 Hz
1080PsF 23.98/24/25 Hz
720p 50/59.94/60 Hz
Inputs HD component YPbPr, RGB (SMPTE-274), BNC
SD component (Betacam,EBU-N10)/composite/YC (S-Video), BNC
External Sync, BNC
Outputs HD/SD-SDI, SMPTE-259/292/296M 3 x BNC
Frequency Response Y +0, -.5 dB to 30 MHz
C +/- .25 dB to 15 MHz
User Controls External Dipswitch
Component/Composite (SD Only)
S-Video (off/on) (SD Only)
Pedestal Present (on/off) (SD Only)
Format (YPbPr/RGB)
NTSC-J (off/on) (SD Only)
SYNC (INT/EXT)
Power +5-20 VDC, 4 watts
Size 5.8" × 3.1" x 1" (147 × 79 × 25 mm)
