Home > Main Convert > HD10MD4

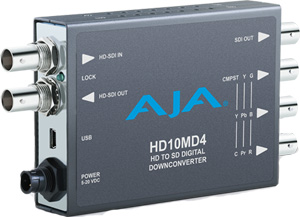

  • AJA HD10MD4 Digital Down-Converter

    Product Code:HD10MD4
    Buy Sell Sales AJA HD10MD4


  • Features

    - Configurable across USB via AJA Mini-Config software for Mac and PC.
    - Low-cost digital HD down-converter
    - Dual-rate HD-SDI/SDI input
    - SDI output
    - Component/Composite output
    - HD-SDI loop output
    - Multi-standard Input Including 1080P/PsF 24 fps
    - 10-bit data path, multi-point interpolation
    - Configurable for 16:9 or 4:3 output
    - 4:3 Safe-zone graticule

AJA HD10MD4: Overview
The HD10MD4 down-converts HD-SDI video to standard definition SDI and analog component/composite video utilizing AJA's high-quality full 10-bit data path and multi-point interpolation to produce broadcast quality down-converted video.

Framerate Conversion
The HD10MD4 converts 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors.

Pristine image quality
Utilizing a full 10-bit data path and AJA's high-quality scaling technology, HD10MD4 maintains the most detail possible to ensure a quality conversion at an extraordinary price.

Audio support
HD10MD4 takes four-channels of embedded HD-SDI audio and passes it to the SD-SDI output. Audio output channels are mapped to follow the input mapping for a 1-to-1 correlation between HD and SD.
