    3G-SDI Analog Audio Embed/Disembed

  • AJA 3G-AMA AJA 3G-AMA

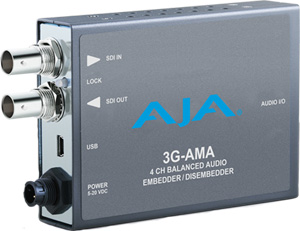

 AJA 3G-AMA 3G-SDI Analog Audio Embed/Disembed
Home > Main Convert > 3G-AMA
  • AJA 3G-AMA

    Product Code:3GAMA
    Buy Sell Sales AJA 3G-AMA


  • Features

    - 3G-SDI Embedder/Disembedder
    - 4-Channel Balanced Analog Audio I/O
    - Supplied XLR breakout cable
    - USB connectivity via AJA MiniConfig software
    - Dipswitch configuration
    - 5-20VDC Power

Overview
The 3G-AMA is a 4-channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p-60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel-pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.



Specfications
Video Input SDI, 1x BNC
HD SMPTE 292/296M
SD SMPTE 259M
3G SMPTE 424/425M
Input Formats 1 x 3Gb SDI (level A or B)
2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2048x1080psf 23.98, 24, 25, 29.97, 30
1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 25, 29.97, 30
1280x720p 50, 59.94, 60
1 x 1.5Gb SDI
2048x1080p 23.98, 24, 25, 29.97, 30
2048x1080psf 23.98, 24, 25, 29.97, 30
1920x1080p 23.98, 24, 25, 29.97, 30
1920x1080psf 23.98, 24, 25, 29.97, 30
1920x1080i 25, 29.97, 30
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1 x 270Mb SDI
525i
625i
Video Output SDI, 1x BNC
Output Formats Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

Video Latency
(time measured between video input and video output connector):
SD (270 Mb) = 17.2 usec
HD (1.5 Gb) = 6.3 usec
3G level A = 3.2 usec
3G level B = 6.1 usec
Audio Inputs and Outputs Balanced Analog Audio, 1 x 25 pin D female connector on converter, 4 channels in, 4 channels out.
Breakout cable provided with 1 x 25 pin D male connector:
4 x XLR female input breakout connectors (AES3 110 ohm)
4 x XLR male output breakout connectors (AES3 110 ohm)

Digital Audio Converters
24-bit

Embedded Audio
SMPTE 272M (SD): 20-bit, 48KHz synchronous
SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
Incoming embedded audio can be passed, removed, or overridden.
Up to 16 channels supported.
NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio.

Embed Path Audio Latency
(time measured between audio input and video output connector):
1100 usec

Disembed Path Audio Latency
(time measured between video input and audio output connector):
1200 usec

Analog Audio Levels
Configured via MiniConfig software:
Pro 1: 0 dBfs = +24 dBu
Pro 2: 0 dBfs = +18 dBu
Pro 3: 0 dBfs = +15 dBu
Consumer 1: 0 dBfs = +12 dBu
User Controls External DIP switch
USB port used with MiniConfig software application to configure device via PC/Mac
Power +5-20VDC, 5 watts. Power Supply Required (included with purchase)
Size 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
Environment Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: <2,500 meters (<8,000 feet)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
