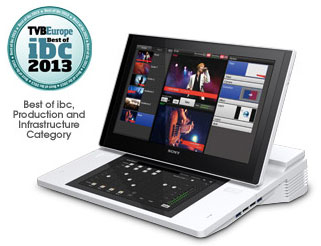

Sony AWS-750 Anycast TouchSony AWS-750 Anycast Touch

 Sony AWS-750 Anycast Touch Portable Live Content Producer

Sony AWS-750 Anycast Touch
Product Code: AWS750
Buy Sell Sales Sony AWS-750



Tablets, smartphones and PCs harness the power of touch. Why not a live production switcher? Sony created the AWS-750 Anycast Touch all-in-one live content producer with incredibly intuitive touchscreen control. Simple to use, not only is the system ideal for broadcasters, it's also easy for students, parishioners and volunteers to master.

Ultra-portable and easy-to-useall-in-one live production solution

The AWS-750 Anycast Touch is a compact, affordable, all-in-one live production solution with intuitive touch panel operation. Anycast Touch instantly makes live production accessible to anyone who requires live broadcasting or webcasting. The portable system is designed to be incredibly easy to use. With no previous live production experience required, it is ideal for a wide range of users, such as houses of worship, educational and government institutions, corporate organizations and event management companies. And as you can expect from Sony, Anycast Touch offers clear and detailed pictures for live production.

Anycast Touch eliminates the need for any of the hardware typically required for professional live streaming. It includes a video switcher, streaming encoder, video recorder, audio mixer, clip player, remote camera controller and titler that supports ten languages. The Anycast Touch allows for seamless video mixing between a number of video sources in a variety of formats. You can record ten hours of video and audio on the internal SSD, create and add graphics elements to the image, control connected remote BRC cameras (pan, tilt and zoom), perform multiple effects and wipes to enhance the production and instantly stream the output over a WAN or the Internet. Additionally, a fully functioned five-channel audio mixer is provided for a separate audio mix.

The Anycast Touch enables intuitive, easy operation, and eliminates the cumbersome setup and signal adjustment process typically required when connecting various devices. Users can also store the setup information of all attached video sources, such as the camera input, title data, and transition effects. Additionally, scene lists can be prepared beforehand, allowing users to simply switch scenes during an event with just a single tap.


Sony AWS-750 Anycast Touch

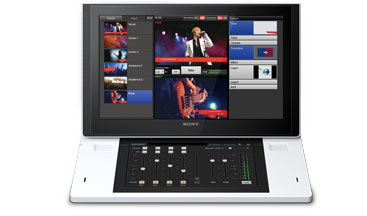

· Intuitive double touch-screen operation

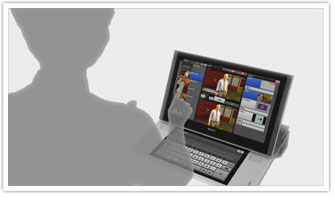

The AWS-750 Anycast Touch has a very simple and easy-to-use operational style with an intuitive double touch-screen interface that requires no technical background to operate. Its tilt screen function enables users either to use the unit as one large flat screen, or tilted, as two dual screens, whereby video and audio controls are split.
     Sony AWS-750 Anycast Touch

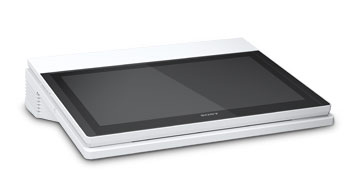

· Stylish and ultra portable design
The Anycast Touch is stylish, compactand ultra-portable. Taking it from one location to the other is easy. Just pack up and go. The all-in-one style system displays sources for input and streaming, for simple operation.

Sony AWS-750 Anycast Touch

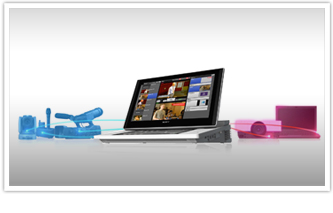

· All-in-one solution
Anycast Touch eliminates the need for any of the hardware typically required for professional live streaming. It includes a video switcher, encoder, recorder, audio mixer, titler and remote camera controller.
Sony AWS-750 Anycast Touch

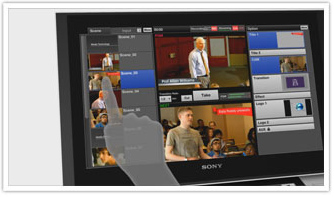

· Multiple video switching
The Anycast Touch features 6 video inputs and 5 video outputs with 1920 x 1080 10-bit processing and 1080i/59.94, 50, 480i/59.94 and 576i/50 operation. It permits seamless switching between camera, PC & Video sources (including audio).

Sony AWS-750 Anycast Touch

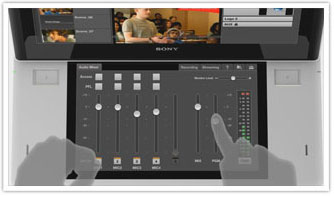

· Stereo audio mixing
The system allows stereo mixing by touch panel fader with limiter/comp/EQ and audio delay adjustments. It features 6 stereo audio inputs and 3 stereo audio outputs.

Sony AWS-750 Anycast Touch

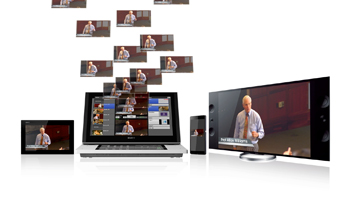

· Instant streaming function
The system allows stable real time streaming over the Internet, LAN, and other dedicated lines.

Sony AWS-750 Anycast Touch

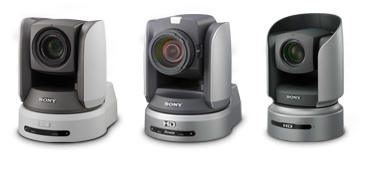

· Camera remote control capability
The Anycast Touch allows operators to easily control one or more compatible pan/tilt/zoom cameras at remote locations. Sony offers a variety of compatible cameras such as BRC Series cameras*
* For available models, please contact your nearest Sony office or Sony authorised dealer.


Sony AWS-750 Anycast Touch
· Internal recorder
The system records PGM output in the built-in 128 GB capacity solid state drive with up to 4 hours capacity. Recorded files can be exported and edited by various types of non-linear editor.

Sony AWS-750 Anycast Touch
· Add still text to any picture, or use wipe and/or dissolve effects
Operators can generate texts to overlay onto the programme output with the touch-screen keyboard. 10 languages are available for the text-typing tool.

· Video Switcher
Up to six inputs including HD/SD-SDI, HDMI, RGB, and/or Composite inputs

· Audio Mixer
Up to five audio inputs can be mixed using the secondary touch panel.

· Real-time Web Streaming
Flash® H.264 web streaming to an external streaming server of program or auxiliary output.

· Program Recording
Record a minimum of 10 hours of PGM output to the built-in solid state drive (SSD) in high resolution

· Text and Title Character Generator
Operators can easily and quickly generate text, in 10 languages, to overlay onto the program output with the built-in touch-screen keyboard on the secondary touch panel.

· Pan-Tilt-Zoom Camera Control
The Anycast Touch allows operators to easily control one or more compatible pan/tilt/zoom cameras at remote locations.

· Clip Playback
Use recorded and imported content as a video source during live productions.

· Scene Operation
Operators can create up to 99 pre-built templates that incorporate titles, logos, transition effects and different sources which can be called upon with a simple touch of a button.

· High Resolution Display Incorporated
All-in-one style system displays sources for input and streaming for simple operation.

System Specifications
Video Formats

1080i/59.94Hz
1080i/50Hz
480i/59.94Hz
576i/50Hz
Video Processing 10 bit

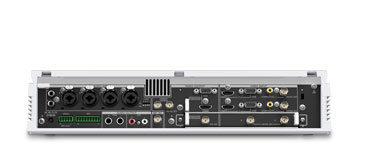

Inputs and Outputs Specifications
Video Input



HD/SD-SDI (BNC) x 4
HDMI (Type A) x 2
* HDCP not supported
RGB (D-Sub 15-pin Female)x 2
Composite (RCA) x 2
Video Output PGM
HD/SD-SDI (BNC) x 2
PGM/AUX
HD-SDI (BNC) x 1
HDMI (Type A) x 1
RGB (D-Sub 15-pin Female) x 1
Reference Outputs BNC Type x 1
Analog black burst signal
NTSC: 0.286 Vp-p x/- 2dB, 75Ω, negative sync
PAL: 0.3 Vp-p x/- 2dB, 75Ω, negative sync
Image Effect Specifications
Effect 2 Titles
2 Logos
2 PinP
Interface Specifications
GPI/TALLY Output


9 pin in-line connector
Input x 4: TTL
Output x 4: Open connector
VISCA Camera Control Up to 7 Cameras
Sony VISCA Camera commands are supported.
5 pin in-line connector / RS-422 equivalent
LAN RJ45 Type x 2
100/1000 base-TX
General Specifications
Power Requirements DC 19.5V, 7.5A
Power Consumption 160 W
Operating Temperature 5 to 35 °C (42 to 95 °F)
Dimensions (W x H x D) 16.34 x 3.74 x 13.23 in (415 x 95 x 336 mm)
Weight 13.68 lbs (6.2 kg)
Supplied Accessories User's Guide (1)
AC Adapter (Operating Voltage 100 V - 240 V, 2.5 A, 50 / 60 Hz ) (1)
