    4K/UHD to HD-SDI and HDMI Down-converter

  • AJA 4K2HD AJA 4K2HD

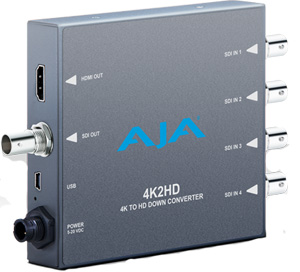

 AJA 4K2HD 4K/UHD to HD-SDI and HDMI Down-converter
Home > Main Convert > 4K2HD
  • AJA 4K2HD

    Product Code:4K2HD
    Buy Sell Sales AJA 4K2HD


  • Features

    - Down-conversion to support 4K on HD-SDI and HDMI devices
    - Supports HDMI v1.4 up to 1080p/59.94/60 4:2:0
    - 4K/UHD inputs using quad or dual 3G SDI
    - Supports 3G/Dual-Link/HD/SD-SDI
    - Supports HDMI 1.4
    - Simultaneous SDI and HDMI outputs
    - True 4K downscaled and cropped for HD output
    - Center cut of original 4K frame supported for focus checks
    - Supports quadrant (square division) and two sample interleave 4K mapping
    - Configure via USB port and supplied Mini-Config software
    - DWP-U-R1 Power Supply Included
    - 5-year warranty

AJA 4K2HD: Overview
AJA's 4K2HD down-converts professional SDI 4K/UHD signals to HD resolution using AJA's high-quality scaling for cost-effective monitoring and conversion. 4K2HD's HD-SDI and HDMI outputs are both live all the time, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast. 4K2HD outputs SDI and HDMI simultaneously. 4K2HD supports high frame rate (HFR) 4K inputs at 50 and 60fps and gets converted to HD outputs at 50 and 60fps for accurate viewing. 4K2HD's configuration options can extract an HD resolution image from the 4K input to provide a one-to-one pixel image for 4K focus checks on HD displays. Configuration can be set remotely via AJA MiniConfig software control over USB.

Real time downconversion
4K2HD uses real time processing and AJA's high-quality scaling algorithms to downconvert professional 4K or UHD signals using 4 × SDI connections to HD resolution, producing fantastic-looking HD images for on set monitoring or direct-to-air broadcast.

Simultaneous HD-SDI and HDMI outputs
4K2HD's HD-SDI and HDMI outputs are live all the time, allowing use of both professional SDI monitors as well as low-cost HDMI monitors simultaneously. No matter what monitors you have on hand, 4K2HD can use them for on the spot 4K viewing.

High frame rate support
Many 4K productions are opting for higher frame rates of 50 and 60fps. 4K2HD supports high frame rate (HFR) 4K inputs and converts the HD output to a matching frame rate for accurate viewing so what you shoot is what you see.

Center-cut extraction
4K2HD can be configured to extract an HD resolution center cut from the 4K input. This provides a one-to-one pixel image that can be used to check focus on 4K shoots without the need for a full 4K monitor.



Specfications:
Input Formats 4K Inputs supported:

4 x 1.5GHz SDI:
4 x 1920x1080p, 4:2:2, 23.98, 24, 25, 29.97, 30
4 x 1920x1080PsF, 4:2:2, 23.98, 24, 25, 29.97, 30
4 x 2048x1080p, 4:2:2, 23.98, 24
4 x 2048x1080PsF, 4:2:2, 23.98, 24

2 x dual-stream 3GHz SDI (level B):
2 x 2 x 1920x1080p, 4:2:2, 23.98, 24, 25, 29.97, 30
2 x 2 x 1920x1080PsF, 4:2:2, 23.98, 24, 25, 29.97, 30
2 x 2 x 2048x1080p, 4:2:2, 23.98, 24
2 x 2 x 2048x1080PsF, 4:2:2, 23.98, 24

4 x 3GHz SDI:
4 x 1920x1080p, 4:2:2, 50, 59.94, 60
4 x 1920x1080p, 4:4:4, 23.98, 24, 25, 29.97, 30
4 x 1920x1080PsF, 4:4:4, 23.98, 24, 25, 29.97, 30
4 x 2048x1080p, 4:4:4, 23.98, 24
4 x 2048x1080PsF, 4:4:4, 23.98, 24

HD Inputs supported (4:2:2 if Single Link or 4:4:4 if Dual Link)
720p 50, 59.94
720p 23.98, 24, 25, 29.97, 30, 50, 59.94
1080i 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 50, 59.94, 60

SD Inputs Supported:
525i
625i
Video Inputs 3G, HD, and SD-SDI (auto-selected), 4x BNC
Video Output 3G, HD, and SD-SDI, 1x BNC
HDMI v1.4, 30/36 bits per pixel, RGB or YUV
HDMI Standard Type A connector
Audio Inputs SDI embedded audio, 24-bit, 8-channel
Audio Outputs SDI embedded audio, 24-bit, 8-channel
HDMI embedded audio, 24-bit, 8-channel
Power +5VDC Regulated, 3 Watts, Power Supply Required (included with purchase)
Size 5.76" x 4.02" x 0.90" (146 × 102 × 23 mm)
