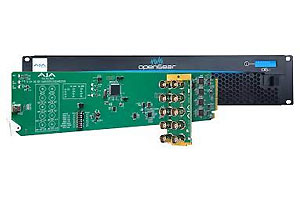

AJA OG-3G-AMD 8-Channel 24-bit AES Embedder / Disembedder
Product Code: OG-3G-AMD
Features
• Video
Formats: 3G-SDI
• 3G-SDI Embedder / Disembedder in one board
• Input: 1x 3G-SDI BNC
• Outputs: 1x 3G-SDI BNC
• 4x AES
BNC (2 channels per input)
|
| Video Formats | 1x 3 Gb SDI (level A or B) (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920 x 1080i 50, 59.94, 60 (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1x 270 Mb SDI (SD) 625i (SD) 525i |
| Video Input Digital | 1x 3G-SDI BNC, SMPTE-259/292/424 |
| Video Output Digital | 1x 3G-SDI BNC, SMPTE-259/292/424 |
| Audio Input Digital | 4x BNC, AES3id |
| Audio Output Digital | 4x BNC, AES3id |
| Audio Data Formats | AES3 2003 SMPTE ST 337 |
| Digital Audio Converters | 24-bit |
| Embedded Audio | SDI embedded audio, 24-bit,
16-Channel* SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous Incoming embedded audio can be passed, removed, or overridden |
| Embed Path Audio Latency | (Time measured between audio input
and video output connector): 1500 usec (SRC ON) 400 usec (SRC OFF) |
| Disembed Path Audio Latency | (Time measured between video input
and audio output connector): 210 usec |
| User Interface | openGear DashBoard network control
software via Windows, macOS or Linux External DIP switch |
| User Controls | External DIP switch openGear DashBoard network control software via Windows, macOS or Linux |
| Size (w x d x h) | openGear standard form factor, front slot and rear card. Two slots required for each card. |
| Weight | 0.5 lb (0.3 kg) |
| Power | openGear frame compatible, 5.0 watts max per card |
| Environment | Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet) |
